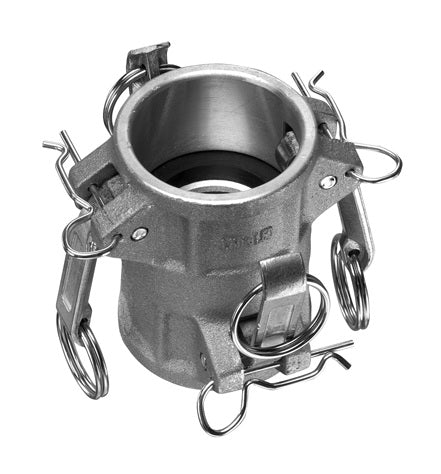

DD-AL150 by Kuriyama | DD-AL Series | Part DD | Cam & Groove Spool Coupler | 1-1/2" Coupler x 1-1/2" Coupler | Aluminum

DD-AL150 by Kuriyama | DD-AL Series | Part DD | Cam & Groove Spool Coupler | 1-1/2" Coupler x 1-1/2" Coupler | Aluminum

Save $17.45 Save $17.45
$63.16
$63.16 - $63.16
$63.16
$45.71
$45.71 - $45.71
$45.71

Kuriyama of America Inc.
Cam & Groove (Camlock) Spool Coupler | DD-AL Series | Part DD | Coupler x Coupler | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: DD-AL150 Kuriyama
Series: DD-AL Series
Shape (Orientation): Straight
Cam Type: Type DD (Spool Coupler)
Ends Configuration: 1-1/2in Female Cam & Groove, 1-1/2in Female Cam & Groove, Some Ends Match
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Supplied with forged brass handles which results in less wear on connecting parts.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
  • Forged brass handles.
  • Zinc-plated carbon steel handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Female Coupler Size
(in)		 Female Coupler Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
DD-AL150 1-1/2" 1-1/2" 250 PSI B85 Grade 383 4.35 lbs
DD-AL200 2" 2" 250 PSI B85 Grade 383 1.43 lbs
DD-AL2030 2" 3" 150 PSI B85 Grade 383 4.35 lbs
DD-AL300 3" 3" 150 PSI B85 Grade 383 2.40 lbs
DD-AL3040 3" 4" 150 PSI B85 Grade 383 5.90 lbs
DD-AL400 4" 4" 150 PSI B85 Grade 383 3.90 lbs
DD-AL600 6" 6" 75 PSI B85 Grade 383 7.32 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
