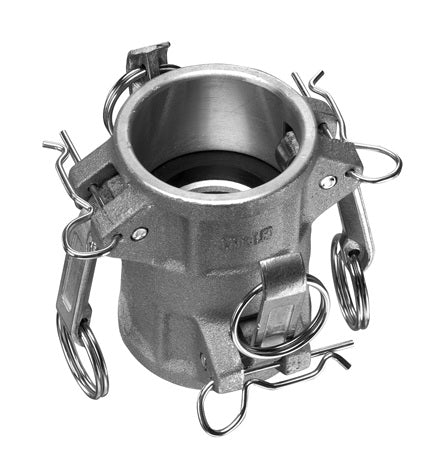

DD-AL200 by Kuriyama | DD-AL Series | Part DD | Cam & Groove Spool Coupler | 2" Coupler x 2" Coupler | Aluminum

Save $13.49

$58.95

$58.95 - $58.95

$58.95

$45.46

$45.46 - $45.46

$45.46

Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Coupler x Coupler - Aluminum

Specifications for Variant SKU: DD-AL200 Kuriyama
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	2in Female Cam & Groove, 2in Female Cam & Groove
Material(s):	Aluminum, Brass
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Aluminum alloy specially designed for high tensile strength and impact resistance.
Supplied with forged brass handles which results in less wear on connecting parts.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability.
Forged brass handles.
Zinc-plated carbon steel handle pins, pull rings and safety clips.
Buna-N gasket included.

Part Number	Female Coupler Size (in)	Female Coupler Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
DD-AL150	1-1/2"	1-1/2"	250 PSI	B85 Grade 383	4.35 lbs
DD-AL200	2"	2"	250 PSI	B85 Grade 383	1.43 lbs
DD-AL2030	2"	3"	150 PSI	B85 Grade 383	4.35 lbs
DD-AL300	3"	3"	150 PSI	B85 Grade 383	2.40 lbs
DD-AL3040	3"	4"	150 PSI	B85 Grade 383	5.90 lbs
DD-AL400	4"	4"	150 PSI	B85 Grade 383	3.90 lbs
DD-AL600	6"	6"	75 PSI	B85 Grade 383	7.32 lbs
