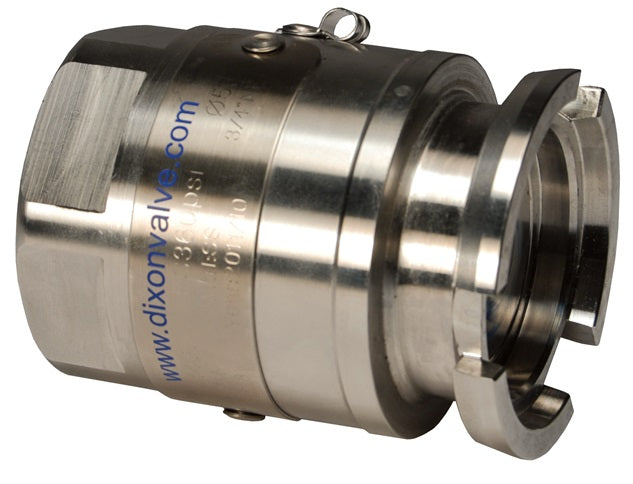

DDSA200SS by Dixon Valve | MannTek Dry Disconnect Adapter | for Steam Service | 2" Female NPT | 70mm Body Size | 316 Stainless Steel

Save $442.23

$1,105.58

$1,105.58 - $1,105.58

$1,105.58

$663.35

$663.35 - $663.35

$663.35

Dixon Valve
MannTek Dry Disconnect Adapter for Steam Service | Female NPT

Designed to fit hoses carrying steam used in chemical (heating), pharmaceutical (disinfection and sterilization) and at loading bays.

Specifications for Variant SKU: DDSA200SS Dixon
Brand:	MannTek
Shape (Orientation):	Straight
Ends Configuration:	70mm Male Manntek Dry Disconnect, 2in Male NPT
Material(s):	316 Stainless Steel
Seal Material(s):	EPDM

Features:
Unintentional separation is eliminated preventing accidents and avoiding unintended down time. Performance unaffected by surface rust.
Construction:
Coupling housing and all inner parts: stainless steel. Seals: EPDM 291.
Safety Note:
Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Specifications:
150 PSI at 350°F (177°C).

Adapters

Part Number	Female NPT	Body Size
DDSA075SS	3/4"	56mm
DDSA100SS	1"	56mm
DDSA150SS	1-1/2"	70mm
DDSA200SS	2"	70mm

Couplers

Part Number	Female NPT	Body Size
DDSC075SS	3/4"	56mm
DDSC100SS	1"	56mm
DDSC150SS	1-1/2"	70mm
DDSC200SS	2"	70mm

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
