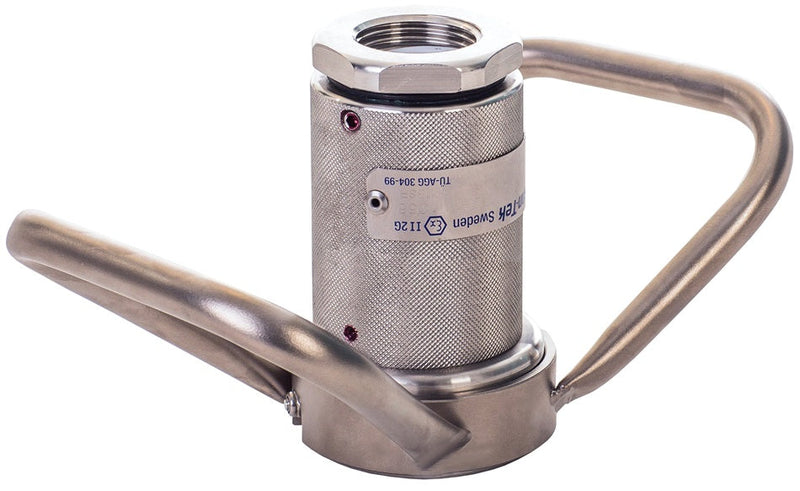

DDSC200SS by Dixon Valve | MannTek Dry Disconnect Coupler | for Steam Service | 2" Female NPT | 70mm Body Size | 316 Stainless Steel

DDSC200SS by Dixon Valve | MannTek Dry Disconnect Coupler | for Steam Service | 2" Female NPT | 70mm Body Size | 316 Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Valve
MannTek Dry Disconnect Coupler for Steam Service | Female NPT

Designed to fit hoses carrying steam used in chemical (heating), pharmaceutical (disinfection and sterilization) and at loading bays.
Specifications for Variant SKU: DDSC200SS Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 70mm Female Manntek Dry Disconnect, 2in Female NPT
Material(s): 316 Stainless Steel
Seal Material(s): EPDM
Features:
  • Unintentional separation is eliminated preventing accidents and avoiding unintended down time.
  • Performance unaffected by surface rust.
  • Couplers supplied with double handles.
Construction:
  • Coupling housing and all inner parts: stainless steel.
  • Seals: EPDM 291.
Safety Note:
  • Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Specifications:
  • 150 PSI at 350°F (177°C).
Couplers
Part Number Female NPT Body Size
DDSC075SS 3/4" 56mm
DDSC100SS 1" 56mm
DDSC150SS 1-1/2" 70mm
DDSC200SS 2" 70mm
Adapters
Part Number Female NPT Body Size
DDSA075SS 3/4" 56mm
DDSA100SS 1" 56mm
DDSA150SS 1-1/2" 70mm
DDSA200SS 2" 70mm
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
