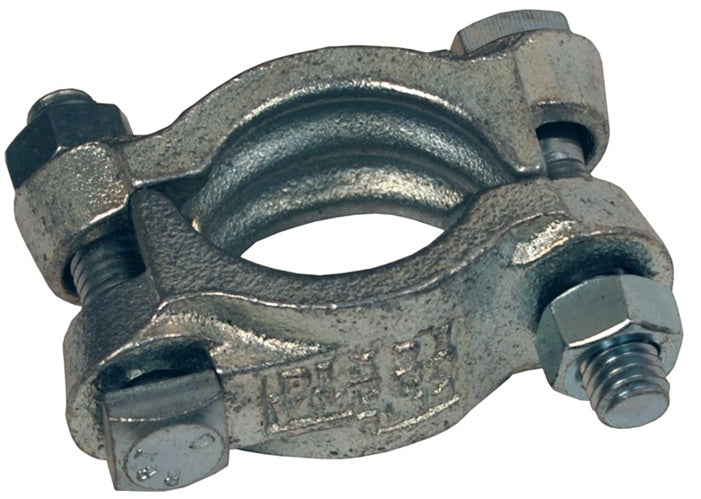

DL306 by Dixon Valve | Double Bolt Clamp | Hose OD Range: from 2-48/64" to 3-4/64" | without Saddles | Plated Iron

DL306 by Dixon Valve | Double Bolt Clamp | Hose OD Range: from 2-48/64" to 3-4/64" | without Saddles | Plated Iron

Save $1.68 Save $1.68
$15.14
$15.14 - $15.14
$15.14
$13.46
$13.46 - $13.46
$13.46

Dixon Valve
Double Bolt Clamps without Saddles
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DL306 Dixon
Material(s): Plated Iron
Minimum Clamp I.D.: 2.75
Maximum Clamp I.D.: 3.0625
Features:
  • Inner surface has dual gripping ridges.
  • Bolt lugs are reinforced to prevent bending out of alignment.
Note:
  • Torque values for clamps are based on dry bolts.
  • The use of lubricant on bolts will adversely effect clamp performance.
  • Measure hose O.D. accurately before ordering clamps.
  • Consult Dixon® when using double bolt clamps on helical wire hose.
Plated Iron
Part Number		 Hose O.D. Range Torque
in ft. lbs.
from to
J48 1-8/64" 1-12/64" 15
J49 1-12/64" 1-24/64" 21
JX49 1-28/64" 1-34/64" 21
DL14 1-40/64" 1-52/64" 40
DL20 1-48/64" 2-3/64" 27
DL24* 2-7/64" 2-19/64" 27
DL32* 2-20/64" 2-40/64" 40
DL275 2-32/64" 2-48/64" 40
DL306 2-48/64" 3-4/64" 60
DL328 3-4/64" 3-24/64" 60
DL350 3-16/64" 3-32/64" 60

* Investment Cast Carbon Steel
