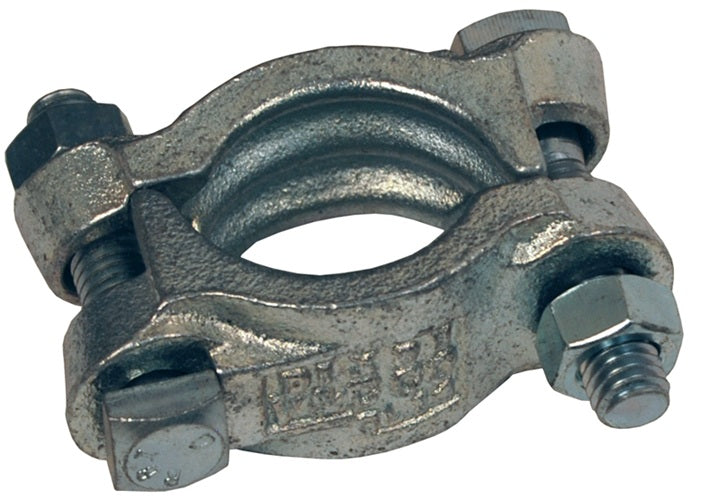

JX49 by Dixon Valve | Double Bolt Clamp | Hose OD Range: from 1-28/64" to 1-34/64" | without Saddles | Plated Iron

JX49 by Dixon Valve | Double Bolt Clamp | Hose OD Range: from 1-28/64" to 1-34/64" | without Saddles | Plated Iron

Save $6.83 Save $6.83
$17.08
$17.08 - $17.08
$17.08
$10.25
$10.25 - $10.25
$10.25

Dixon Valve
Double Bolt Clamps without Saddles
Specifications for Variant SKU: JX49 Dixon
Material(s): Plated Iron
Minimum Clamp I.D.: 1.4375
Maximum Clamp I.D.: 1.53125
Features:
  • Inner surface has dual gripping ridges.
  • Bolt lugs are reinforced to prevent bending out of alignment.
Note:
  • Torque values for clamps are based on dry bolts.
  • The use of lubricant on bolts will adversely effect clamp performance.
  • Measure hose O.D. accurately before ordering clamps.
  • Consult Dixon® when using double bolt clamps on helical wire hose.
Plated Iron
Part Number		 Hose O.D. Range Torque
in ft. lbs.
from to
J48 1-8/64" 1-12/64" 15
J49 1-12/64" 1-24/64" 21
JX49 1-28/64" 1-34/64" 21
DL14 1-40/64" 1-52/64" 40
DL20 1-48/64" 2-3/64" 27
DL24* 2-7/64" 2-19/64" 27
DL32* 2-20/64" 2-40/64" 40
DL275 2-32/64" 2-48/64" 40
DL306 2-48/64" 3-4/64" 60
DL328 3-4/64" 3-24/64" 60
DL350 3-16/64" 3-32/64" 60

* Investment Cast Carbon Steel
