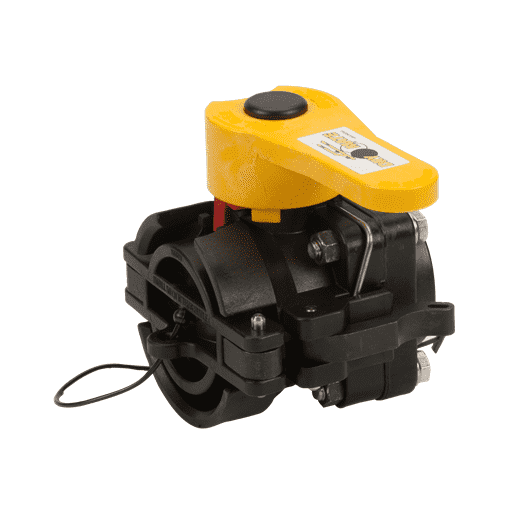

DM200DB Banjo Polypropylene Dry-Mate Dry Disconnect 2" Female x FPT BSP - Opening Thru Ball: 1-1/2" - 100 PSI

DM200DB by Banjo | Dry-Mate® Dry Disconnects | 2" Female x FPT BSP with FKM Seal | Opening Thru Ball: 1-1/2" | 100 PSI | Polypropylene

Save $30.26 Save $30.26
$204.67
$204.67 - $204.67
$204.67
$174.41
$174.41 - $174.41
$174.41

Banjo Dry Disconnects - 2" Dry-Disconnect - Polypropylene
Specifications for Variant SKU: DM200DB Banjo
Shape (Orientation): Straight
Ends Configuration: 2in Female BSPP, 2in Female Dry-Mate Dry Disconnect
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
  • Agriculture
  • Industrial
Features:
  • Dry-Mate Patented
  • Lightweight
  • Unrestricted 1-1/2" flow
  • Minimal fluid spillage
  • Easy to use
  • Economical
  • Reduces risk of exposure
  • Wide range of chemical resistance
  • Cannot be uncoupled in open position
  • Spillage Data: 1-1/2" = 2 ml and 2" = 2 ml
  • User friendly: Operating a Banjo Dry-Mate is simple. The handles interlock making it easy to identify which handle opens or closes first. No guessing involved! The two Dry-Mate halves couple together with cam levers for positive engagement.
  • Design: The Banjo Dry-Mate is designed for safe and easy spill free connections. The "double ball" design allows maximum flow, while the cam lever style of connection is the most recognized fluid connector.
  • Comes complete with dust covers to protect balls and seals when not in use. Lanyard included
Manuals:
Part Number End Type Max PSI Pipe Size Opening Thru Ball
Male Dry-Mate
DM200A 2" Male x FPT NPT 100 PSI 2" 1-1/2"
DM200AB 2" Male x FPT BSP 100 PSI 2" 1-1/2"
DM200AE 2" Male x FPT NPT w/ EPDM Seals 100 PSI 2" 1-1/2"
DMMT201A 2" Male x Male NPT w/ low profile handle 100 PSI 2" 1-1/2"
Female Dry-Mate
DM200D 2" Female x FPT NPT 100 PSI 2" 1-1/2"
DM200DB 2" Female x FPT BSP 100 PSI 2" 1-1/2"
DM200DE 2" Female w/ EPDM Seals 100 PSI 2" 1-1/2"
Replacement Parts for DM150A & DM200A
Item Part Number Description Quantity Required
2 VS20151* Stem 1
3 DM20256 2" Female NPT End Plate 1
3 V20291 2" Female Manifold End Plate 1
4 V20060* Thrust Bearing PTFE 2
5 V20021 Handle Flat Washer 1
6 V20020 Handle Bolt 1
7 V20353C Handle Plug 1
8 V21204V* FKM (viton type) Body O-Ring 1
9 V20010SS Body Bolts 1
10 V20019 3/8" 316 SS Hex Nut 4
11 V20018 3/8" Lock Washer 4
12 DB20258* Seat PTFE 4
13 DB20255* Ball 1
14 DM20153M Male Handle 1
14 DB20153M Low Profile Handle 1
15 DB20288* Anti-Rotation Button 1
16 DB20290* FKM (viton type) Face Seal 1
16 DM20295A EPDM Face Seal 1
16 DM20296 Kalrez® Face Seal 1
17 DB20294 Valve Insert 2
18 DM20300 Cam 2
19 V20258A* End Plate Seat 1
20 DB20281 Button Spring 1
21 DM200CAP Dust Cap 1
22 DM20265 Spacer O-Ring 2
23 200P Pin 1
Not Shown V20207A Lanyard 1
Not Shown DM20200A Repair Kit 1

* Is included in Repair Kit

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
