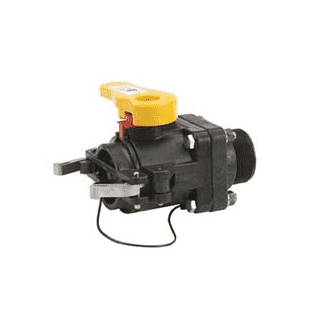

DMMT201A by Banjo | Dry-Mate® Dry Disconnects | 2" Male x Male NPT (Low Profile Handle) | Opening Thru Ball: 1-1/2" | 100 PSI | Polypropylene

Save $20.84

$187.55

$187.55 - $187.55

$187.55

$166.71

$166.71 - $166.71

$166.71

Banjo Dry Disconnects - 2" Dry-Disconnect - Polypropylene

Quantity

Specifications for Variant SKU: DMMT201A Banjo
Shape (Orientation):	Straight
Ends Configuration:	2in Male NPT, 2in Male Dry-Mate Dry Disconnect
Material(s):	Polypropylene

Applications:
Fluids Agriculture Industrial
Features:
Dry-Mate Patented Lightweight Unrestricted 1-1/2" flow Minimal fluid spillage Easy to use Economical Reduces risk of exposure Wide range of chemical resistance Cannot be uncoupled in open position Spillage Data: 1-1/2" = 2 ml and 2" = 2 ml User friendly: Operating a Banjo Dry-Mate is simple. The handles interlock making it easy to identify which handle opens or closes first. No guessing involved! The two Dry-Mate halves couple together with cam levers for positive engagement. Design: The Banjo Dry-Mate is designed for safe and easy spill free connections. The "double ball" design allows maximum flow, while the cam lever style of connection is the most recognized fluid connector. Comes complete with dust covers to protect balls and seals when not in use. Lanyard included
Manuals:
DM200A & DM200D Instruction Manual

Part Number	End Type	Max PSI	Pipe Size	Opening Thru Ball
Male Dry-Mate
DM200A	2" Male x FPT NPT	100 PSI	2"	1-1/2"
DM200AB	2" Male x FPT BSP	100 PSI	2"	1-1/2"
DM200AE	2" Male x FPT NPT w/ EPDM Seals	100 PSI	2"	1-1/2"
DMMT201A	2" Male x Male NPT w/ low profile handle	100 PSI	2"	1-1/2"
Female Dry-Mate
DM200D	2" Female x FPT NPT	100 PSI	2"	1-1/2"
DM200DB	2" Female x FPT BSP	100 PSI	2"	1-1/2"
DM200DE	2" Female w/ EPDM Seals	100 PSI	2"	1-1/2"


Replacement Parts for DM150A & DM200A
Item	Part Number	Description	Quantity Required
2	VS20151*	Stem	1
3	DM20256	2" Female NPT End Plate	1
3	V20291	2" Female Manifold End Plate	1
4	V20060*	Thrust Bearing PTFE	2
5	V20021	Handle Flat Washer	1
6	V20020	Handle Bolt	1
7	V20353C	Handle Plug	1
8	V21204V*	FKM (viton type) Body O-Ring	1
9	V20010SS	Body Bolts	1
10	V20019	3/8" 316 SS Hex Nut	4
11	V20018	3/8" Lock Washer	4
12	DB20258*	Seat PTFE	4
13	DB20255*	Ball	1
14	DM20153M	Male Handle	1
14	DB20153M	Low Profile Handle	1
15	DB20288*	Anti-Rotation Button	1
16	DB20290*	FKM (viton type) Face Seal	1
16	DM20295A	EPDM Face Seal	1
16	DM20296	Kalrez® Face Seal	1
17	DB20294	Valve Insert	2
18	DM20300	Cam	2
19	V20258A*	End Plate Seat	1
20	DB20281	Button Spring	1
21	DM200CAP	Dust Cap	1
22	DM20265	Spacer O-Ring	2
23	200P	Pin	1
Not Shown	V20207A	Lanyard	1
Not Shown	DM20200A	Repair Kit	1

* Is included in Repair Kit

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
