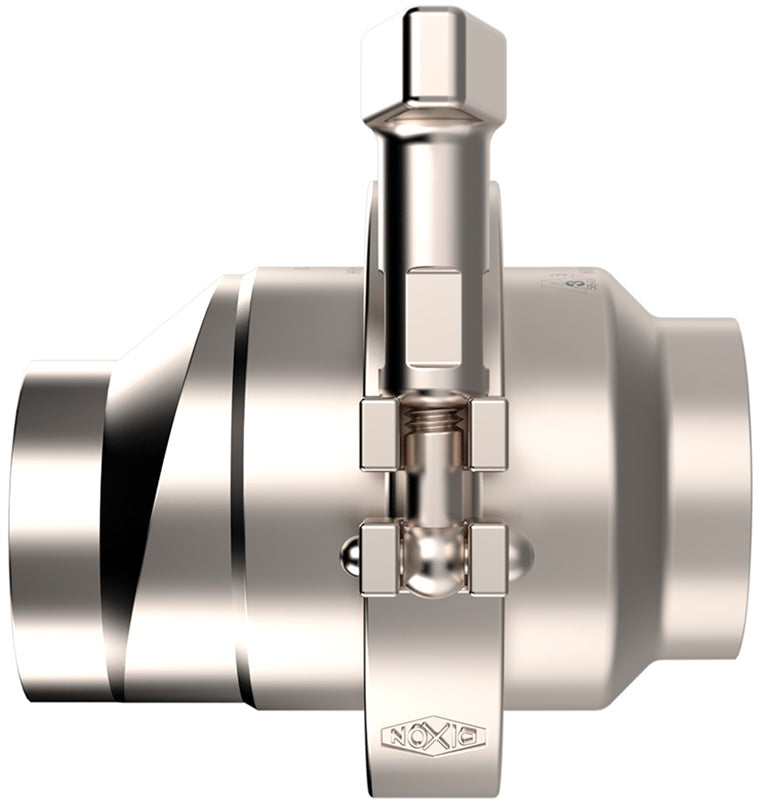

EHSCV100BB Dixon Valve EHSC Spring Check Valve - 1" Weld Connection - FKM Gasket - 316L Stainless Steel

EHSCV100BB Dixon Valve EHSC Spring Check Valve - 1" Weld Connection - FKM Gasket - 316L Stainless Steel

$0.00 - $0.00
$0.00
$278.59
$278.59 - $278.59
$278.59

Dixon Sanitary Fittings EHSC Spring Check Valve - Weld Connection - 316L Stainless Steel

Designed to prevent reverse flow. The eccentric design makes them ideal for horizontal applications.
Specifications for Variant SKU: EHSCV100BB Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Weld End, 1in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • Machined from solid bar
  • Standard O-ring (FKM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
EHSCV050BB 1/2" 10.0 PSI 145 PSI
EHSCV075BB 3/4" 4.0 PSI 145 PSI
EHSCV100BB 1" 2.5 PSI 145 PSI
EHSCV150BB 1-1/2" 1.0 PSI 145 PSI
EHSCV200BB 2" 1.5 PSI 145 PSI
EHSCV250BB 2-1/2" 0.8 PSI 145 PSI
EHSCV300BB 3" 0.5 PSI 145 PSI
EHSCV400BB 4" 0.4 PSI 145 PSI
