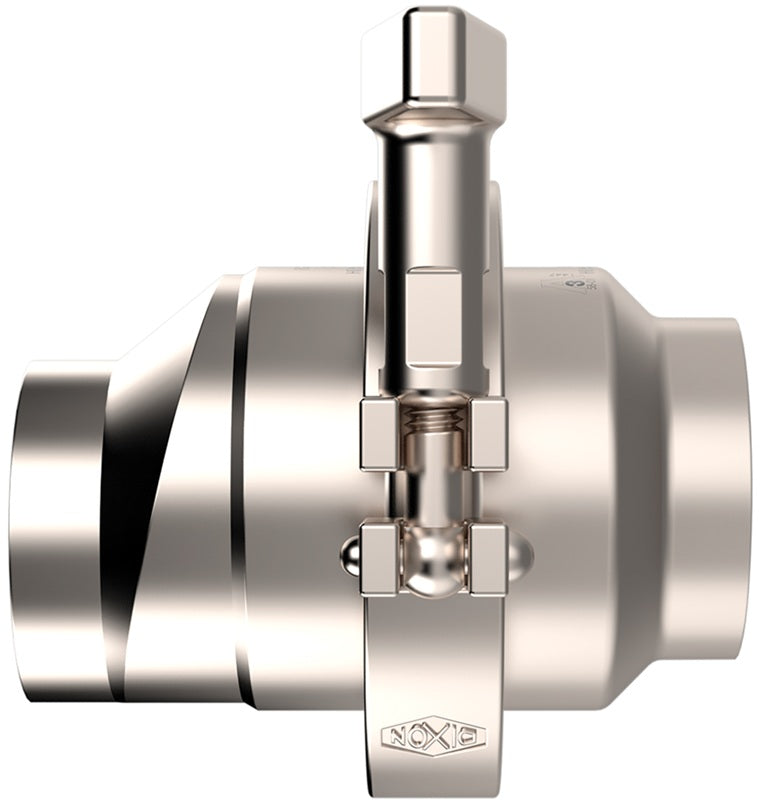

EHSCV300BB Dixon Valve EHSC Spring Check Valve - 3" Weld Connection - FKM Gasket - 316L Stainless Steel

EHSCV300BB Dixon Valve EHSC Spring Check Valve - 3" Weld Connection - FKM Gasket - 316L Stainless Steel

$0.00 - $0.00
$0.00
$462.71
$462.71 - $462.71
$462.71

Dixon Sanitary Fittings EHSC Spring Check Valve - Weld Connection - 316L Stainless Steel

Designed to prevent reverse flow. The eccentric design makes them ideal for horizontal applications.
Specifications for Variant SKU: EHSCV300BB Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Weld End, 3in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • Machined from solid bar
  • Standard O-ring (FKM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
EHSCV050BB 1/2" 10.0 PSI 145 PSI
EHSCV075BB 3/4" 4.0 PSI 145 PSI
EHSCV100BB 1" 2.5 PSI 145 PSI
EHSCV150BB 1-1/2" 1.0 PSI 145 PSI
EHSCV200BB 2" 1.5 PSI 145 PSI
EHSCV250BB 2-1/2" 0.8 PSI 145 PSI
EHSCV300BB 3" 0.5 PSI 145 PSI
EHSCV400BB 4" 0.4 PSI 145 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
