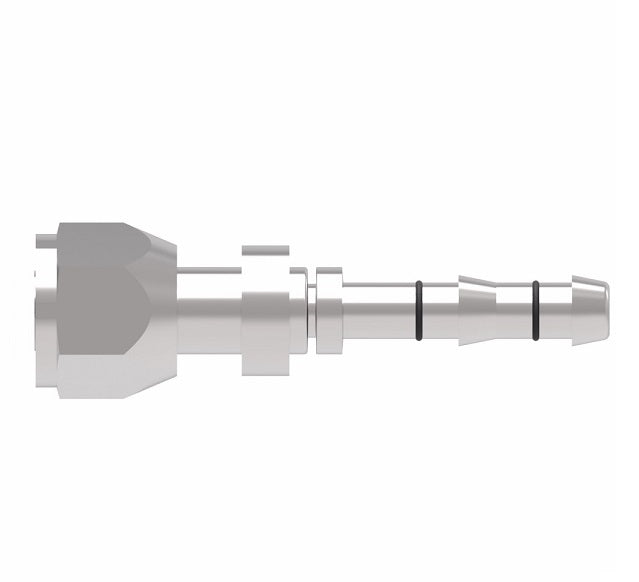

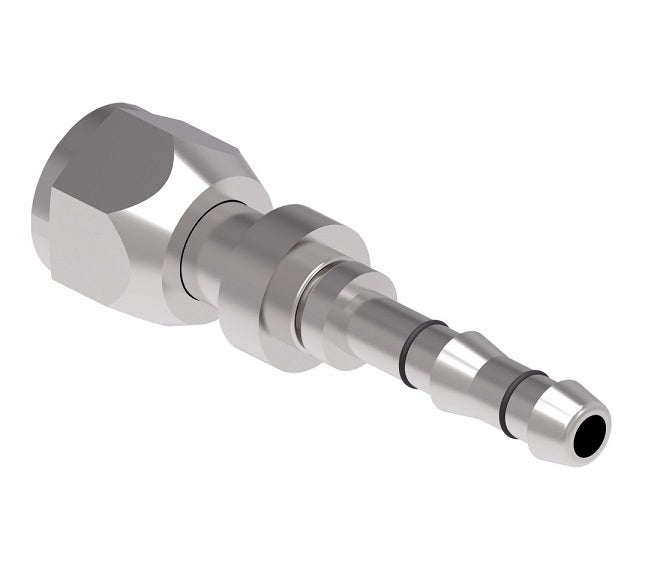

EJ3111-1216S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Long Pilot x -16 Hose Barb | Steel
EJ3111-1216S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Long Pilot x -16 Hose Barb | Steel
EJ3111-1216S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Long Pilot x -16 Hose Barb | Steel
EJ3111-1216S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Long Pilot x -16 Hose Barb | Steel

EJ3111-1216S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) | A/C Refrigeration Fitting | -12 Female O-Ring Long Pilot x -16 Hose Barb | Steel

$56.57 - $56.57
$56.57
$56.57 - $56.57
$56.57

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Long Pilot) - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: EJ3111-1216S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 3/4in Female O-Ring Long Pilot, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3632-0606S 5/8-18 -06 3.04" 1.51" 0.75" FF14171 22546-11 FF90178-11
FJ3632-0806S 3/4-16 -06 2.91" 1.36" 0.88" FF14171 22546-13 FF90178-13
FJ3632-0808S 3/4-16 -08 3.20" 1.66" 0.88" FF14172 22546-13 FF90178-13
FJ3632-1010S 7/8-14 -10 3.63" 2.08" 1.06" FF14173 22546-15 FF90178-15
FJ3632-1012S 7/8-14 -12 3.66" 2.08" 1.06" FF14174 22546-15 FF90178-15
FJ3632-1212S 1-1/8-14 -12 4.25" 2.67" 1.25" FF14174 22546-17 FF90178-17
EJ3111-1216S 1-1/16-14 -16 4.35" 2.67" 1.25" FF14401 22546-17 FF90178-17
