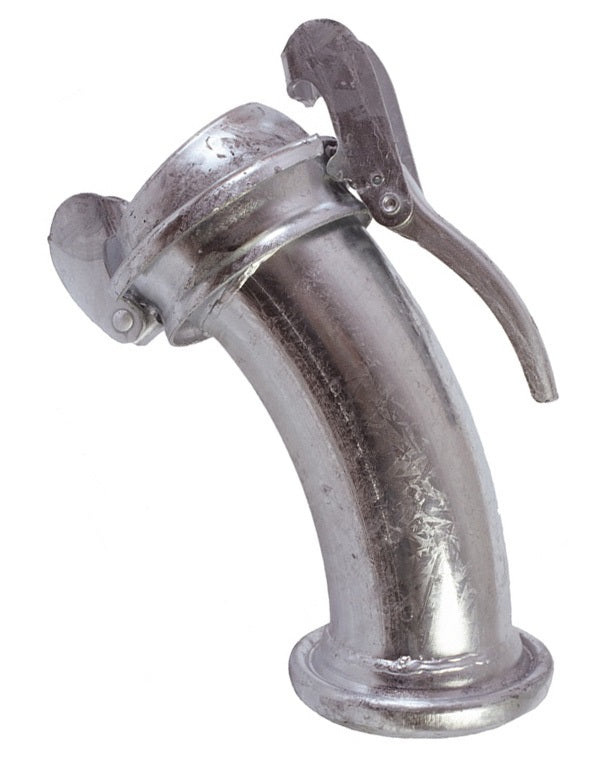

EL31512-45 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 12" Size | 45° Elbow | Male x Female | Galvanized Steel

Save $726.48

$1,816.20

$1,816.20 - $1,816.20

$1,816.20

$1,089.72

$1,089.72 - $1,089.72

$1,089.72

Dixon Valve
Type B (Bauer Style) Quick Connect Fitting | 45° Elbow | Male x Female

Used primarily on irrigation and suction lines.

Specifications for Variant SKU: EL31512-45 Dixon
Shape (Orientation):	45 Degree
Ends Configuration:	12in Male Bauer - Type B, 12in Female Bauer - Type B
Material(s):	Galvanized Steel

Features:
Bauer style locks on the male side. Has a double pin locking lever for smooth closing action. Equipped with a safety pin to prevent accidental openings.
Materials:
Hot dipped, galvanized Gasket included
Safety Notes:
These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.

Type B (Bauer-Lock) \| 45° Elbow \| Male x Female

Part Number	Size
EL3154-45	4"
EL3156-45	6"
EL3158-45	8"
EL31510-45*	10"
EL31512-45*	12"

*10" and 12" supplied with ACB304 lever assist bar
