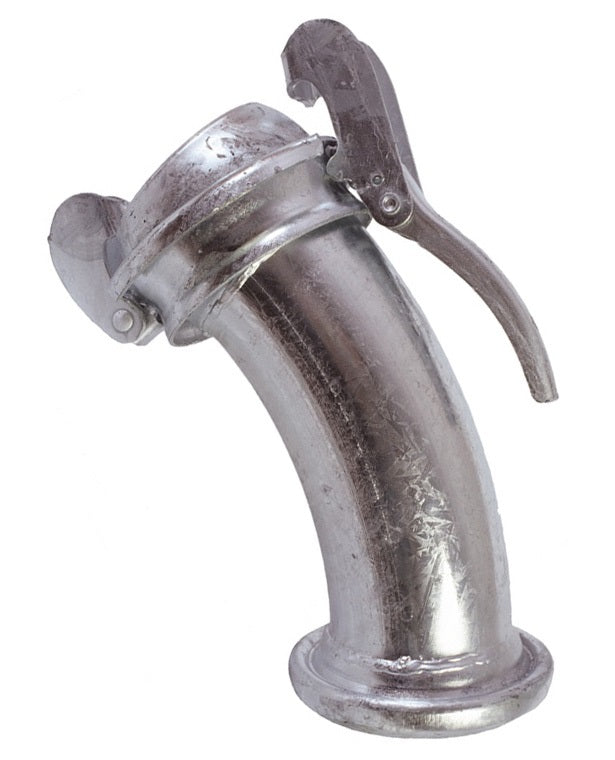

EL3158-45 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | 8" Size | 45° Elbow | Male x Female | Galvanized Steel

Save $260.05

$650.13

$650.13 - $650.13

$650.13

$390.08

$390.08 - $390.08

$390.08

Dixon Valve
Type B (Bauer Style) Quick Connect Fitting | 45° Elbow | Male x Female

Used primarily on irrigation and suction lines.

Specifications for Variant SKU: EL3158-45 Dixon
Shape (Orientation):	45 Degree
Ends Configuration:	8in Male Bauer - Type B, 8in Female Bauer - Type B
Material(s):	Galvanized Steel

Features:
Bauer style locks on the male side. Has a double pin locking lever for smooth closing action. Equipped with a safety pin to prevent accidental openings.
Materials:
Hot dipped, galvanized Gasket included
Safety Notes:
These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.

Type B (Bauer-Lock) \| 45° Elbow \| Male x Female

Part Number	Size
EL3154-45	4"
EL3156-45	6"
EL3158-45	8"
EL31510-45*	10"
EL31512-45*	12"

*10" and 12" supplied with ACB304 lever assist bar

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
