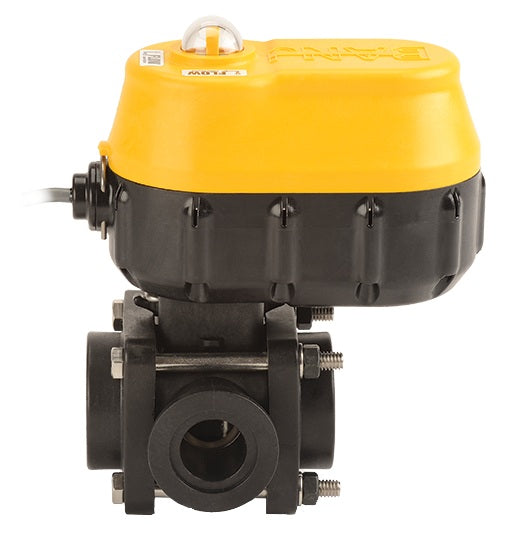

EVX100SL by Banjo | EVX Bolted Side Load Electric Valve | Full Port | 1" Pipe Size | 1" Opening Thru Ball | FKM Seals | Polypropylene

EVX100SL by Banjo | EVX Bolted Side Load Electric Valve | Full Port | 1" Pipe Size | 1" Opening Thru Ball | FKM Seals | Polypropylene

Save $151.61 Save $151.61
$530.64
$530.64 - $530.64
$530.64
$379.03
$379.03 - $379.03
$379.03

Banjo® Liquid Handling Products
EVX Bolted Side Load Electric Valve | Full Port
Specifications for Variant SKU: EVX100SL Banjo
Series: EVX Series
Shape (Orientation): Tee
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Features:
  • 12-volt DC operated.
  • 24-volt available.
  • Open/closed indicator.
  • 1" & 1-1/4" ON/OFF has ¾ second response.
  • 1-1/2" & 2" ON/OFF has 1-1/2" second response.
  • Open / Close verification available.
  • IP68 waterproof.
  • -0 to 150F (-18 to 65C) operating.
  • -67 to 221F (-55 to 105C) storage.
  • On/Off Actuator rated to 500,000 cycles.
  • Valve rated to 50,000 cycles leak-free.
  • These bolted valves have the exact same dimensions as Banjo's legacy EV valves.
  • Additional protocols available including CAN/ISO BUS.
Materials:
  • 316 stainless steel ball & stem
  • Stainless steel hardware
  • Fiberglass reinforced polypropylene
  • PTFE seats
  • FKM stem seals
On/Off:
  • Red = +12V DC
  • Black = Ground
  • White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
  • Red = +12V DC (Open)
  • White = Ground (Open)
  • Black = +12V DC (Close)
  • Green = Ground (Close)
Part Number Description Max
PSI		 Pipe
Size		 Opening
Thru Ball		 Optional
Handle
Kit		 Repair
Kit
EVX075SL 3/4" Full Port Side Load Electric Valve 300 3/4" 1" 1 VP20153SH EVX10200
EVX100SL 1" Full Port Port Side Electric Valve 300 1" 1" 1 VP20153SH EVX10200
EVX0125SL 1-1/4" Full Port side Load Electric Valve 250 1-1/4" 1" 1 VP20153SH EVX10200
EVX150SL 1-1/2" Full Port side Load Electric Valve 250 1-1/2" 1-1/2" 1 VP20153SH EVX20200
EVX200SL 2" Standard Port Side Load Electric Valve 250 2" 1-1/2" 1 VP20153 EVX20200
EVX220SL 2" Full Port Side Load Electric Valve 125 2" 2" 1 VP20153 EVX25200
