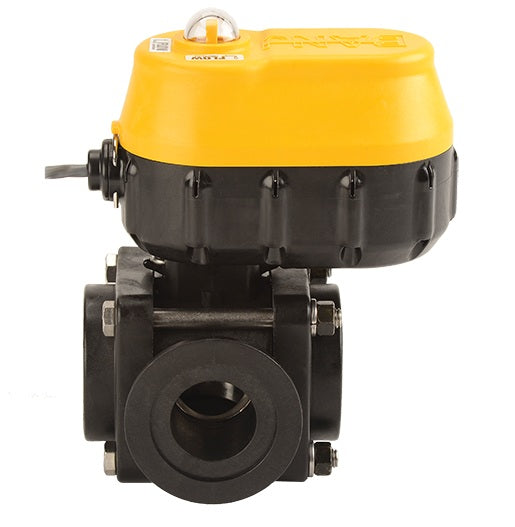

EVX200SL by Banjo | EVX Bolted Side Load Electric Valve | Standard Port | 2" Pipe Size | 1-1/2" Opening Thru Ball | FKM Seals | Polypropylene

Save $64.50

$580.53

$580.53 - $580.53

$580.53

$516.03

$516.03 - $516.03

$516.03

Banjo® Liquid Handling Products
EVX Bolted Side Load Electric Valve | Standard Port

Quantity

Specifications for Variant SKU: EVX200SL Banjo
Series:	EVX Series
Shape (Orientation):	Tee
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Features:
12-volt DC operated. 24-volt available. Open/closed indicator. 1" & 1-1/4" ON/OFF has ¾ second response. 1-1/2" & 2" ON/OFF has 1-1/2" second response. Open / Close verification available. IP68 waterproof. -0 to 150F (-18 to 65C) operating. -67 to 221F (-55 to 105C) storage. On/Off Actuator rated to 500,000 cycles. Valve rated to 50,000 cycles leak-free. These bolted valves have the exact same dimensions as Banjo's legacy EV valves. Additional protocols available including CAN/ISO BUS.
Materials:
316 stainless steel ball & stem Stainless steel hardware Fiberglass reinforced polypropylene PTFE seats FKM stem seals
On/Off:
Red = +12V DC Black = Ground White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
Red = +12V DC (Open) White = Ground (Open) Black = +12V DC (Close) Green = Ground (Close)

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball	Optional Handle Kit	Repair Kit
EVX075SL	3/4" Full Port Side Load Electric Valve	300	3/4"	1"	1	VP20153SH	EVX10200
EVX100SL	1" Full Port Port Side Electric Valve	300	1"	1"	1	VP20153SH	EVX10200
EVX0125SL	1-1/4" Full Port side Load Electric Valve	250	1-1/4"	1"	1	VP20153SH	EVX10200
EVX150SL	1-1/2" Full Port side Load Electric Valve	250	1-1/2"	1-1/2"	1	VP20153SH	EVX20200
EVX200SL	2" Standard Port Side Load Electric Valve	250	2"	1-1/2"	1	VP20153	EVX20200
EVX220SL	2" Full Port Side Load Electric Valve	125	2"	2"	1	VP20153	EVX25200
