F-10V-SKIT by Dixon Valve | Hydraulic Quick Disconnect Coupling | V-Series | MIL-C-51234 Coupler Seal Kit | For 1-1/4" Body Size | FKM Seal

F-10V-SKIT by Dixon Valve | Hydraulic Quick Disconnect Coupling | V-Series | MIL-C-51234 Coupler Seal Kit | For 1-1/4" Body Size | FKM Seal

Save $6.93 Save $6.93
$17.32
$17.32 - $17.32
$17.32
$10.39
$10.39 - $10.39
$10.39

Dixon Valve & Coupling

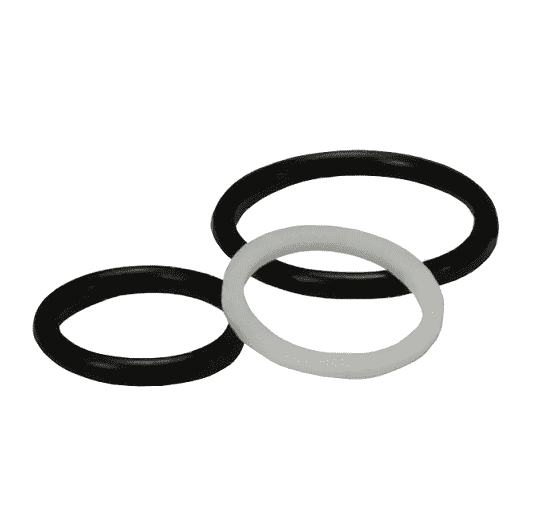

Hydraulic Coupling: V-Series MIL-C-51234 Coupler Seal Kit

Seal Kit Contents: Body/Adapter O-Rings and PTFE Back-Up.
Specifications for Variant SKU: F-10V-SKIT Dixon
Series: V-Series
Seal Material(s): Viton/FKM
Compatibility & Interchange:
  • Interchangeable to MIL-C-51234
  • Snap-Tite H/IH and Faster TNV/TNL
Additional Information:
Part Number Fits Body Size Seal Material Seal Kit Contents
2V-SKIT 1/4" Nitrile Body/adapter O-rings and PTFE back-up
F-2V-SKIT 1/4" FKM Body/adapter O-rings and PTFE back-up
P-2V-SKIT 1/4" EPDM Body/adapter O-rings and PTFE back-up

3V-SKIT 3/8" Nitrile Body/adapter O-rings and PTFE back-up
F-3V-SKIT 3/8" FKM Body/adapter O-rings and PTFE back-up
P-3V-SKIT 3/8" EPDM Body/adapter O-rings and PTFE back-up

4V-SKIT 1/2" Nitrile Body/adapter O-rings and PTFE back-up
F-4V-SKIT 1/2" FKM Body/adapter O-rings and PTFE back-up
P-4V-SKIT 1/2" EPDM Body/adapter O-rings and PTFE back-up

6V-SKIT 3/4" Nitrile Body/adapter O-rings and PTFE back-up
F-6V-SKIT 3/4" FKM Body/adapter O-rings and PTFE back-up
P-6V-SKIT 3/4" EPDM Body/adapter O-rings and PTFE back-up

8V-SKIT 1" Nitrile Body/adapter O-rings and PTFE back-up
F-8V-SKIT 1" FKM Body/adapter O-rings and PTFE back-up
P-8V-SKIT 1" EPDM Body/adapter O-rings and PTFE back-up

10V-SKIT 1-1/4" Nitrile Body/adapter/valve O-rings and back-up
F-10V-SKIT 1-1/4" FKM Body/adapter/valve O-rings and back-up
P-10V-SKIT 1-1/4" EPDM Body/adapter/valve O-rings and back-up

12V-SKIT 1-1/2" Nitrile Body/adapter/valve O-rings and back-up
F-12V-SKIT 1-1/2" FKM Body/adapter/valve O-rings and back-up
P-12V-SKIT 1-1/2" EPDM Body/adapter/valve O-rings and back-up

16V-SKIT 2" Nitrile Body/adapter/valve O-rings and back-up
F-16V-SKIT 2" FKM Body/adapter/valve O-rings and back-up
P-16V-SKIT 2" EPDM Body/adapter/valve O-rings and back-up
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
