P-16V-SKIT by Dixon Valve | Hydraulic Quick Disconnect Coupling | V-Series | MIL-C-51234 Coupler Seal Kit | For 2" Body Size | EPDM Seal

P-16V-SKIT by Dixon Valve | Hydraulic Quick Disconnect Coupling | V-Series | MIL-C-51234 Coupler Seal Kit | For 2" Body Size | EPDM Seal

Save $1.40 Save $1.40
$12.59
$12.59 - $12.59
$12.59
$11.19
$11.19 - $11.19
$11.19

Dixon Valve & Coupling
Hydraulic Coupling: V-Series MIL-C-51234 Coupler Seal Kit

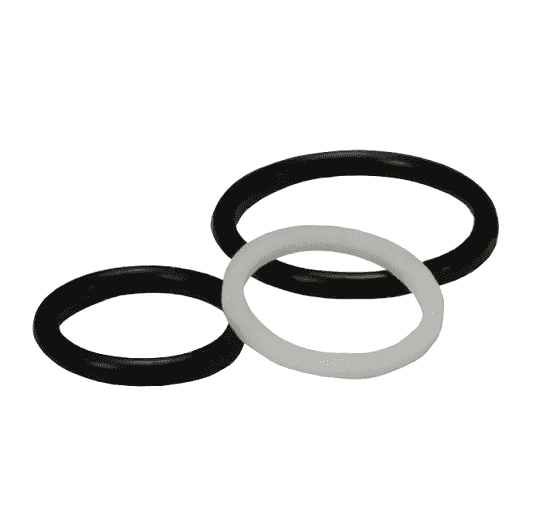

Seal Kit Contents: Body/Adapter O-Rings and PTFE Back-Up.
Specifications for Variant SKU: P-16V-SKIT Dixon
Series: V-Series
Seal Material(s): EPDM
Compatibility & Interchange:
  • Interchangeable to MIL-C-51234
  • Snap-Tite H/IH and Faster TNV/TNL
Additional Information:
Part Number Fits Body Size Seal Material Seal Kit Contents
2V-SKIT 1/4" Nitrile Body/adapter O-rings and PTFE back-up
F-2V-SKIT 1/4" FKM Body/adapter O-rings and PTFE back-up
P-2V-SKIT 1/4" EPDM Body/adapter O-rings and PTFE back-up

3V-SKIT 3/8" Nitrile Body/adapter O-rings and PTFE back-up
F-3V-SKIT 3/8" FKM Body/adapter O-rings and PTFE back-up
P-3V-SKIT 3/8" EPDM Body/adapter O-rings and PTFE back-up

4V-SKIT 1/2" Nitrile Body/adapter O-rings and PTFE back-up
F-4V-SKIT 1/2" FKM Body/adapter O-rings and PTFE back-up
P-4V-SKIT 1/2" EPDM Body/adapter O-rings and PTFE back-up

6V-SKIT 3/4" Nitrile Body/adapter O-rings and PTFE back-up
F-6V-SKIT 3/4" FKM Body/adapter O-rings and PTFE back-up
P-6V-SKIT 3/4" EPDM Body/adapter O-rings and PTFE back-up

8V-SKIT 1" Nitrile Body/adapter O-rings and PTFE back-up
F-8V-SKIT 1" FKM Body/adapter O-rings and PTFE back-up
P-8V-SKIT 1" EPDM Body/adapter O-rings and PTFE back-up

10V-SKIT 1-1/4" Nitrile Body/adapter/valve O-rings and back-up
F-10V-SKIT 1-1/4" FKM Body/adapter/valve O-rings and back-up
P-10V-SKIT 1-1/4" EPDM Body/adapter/valve O-rings and back-up

12V-SKIT 1-1/2" Nitrile Body/adapter/valve O-rings and back-up
F-12V-SKIT 1-1/2" FKM Body/adapter/valve O-rings and back-up
P-12V-SKIT 1-1/2" EPDM Body/adapter/valve O-rings and back-up

16V-SKIT 2" Nitrile Body/adapter/valve O-rings and back-up
F-16V-SKIT 2" FKM Body/adapter/valve O-rings and back-up
P-16V-SKIT 2" EPDM Body/adapter/valve O-rings and back-up
