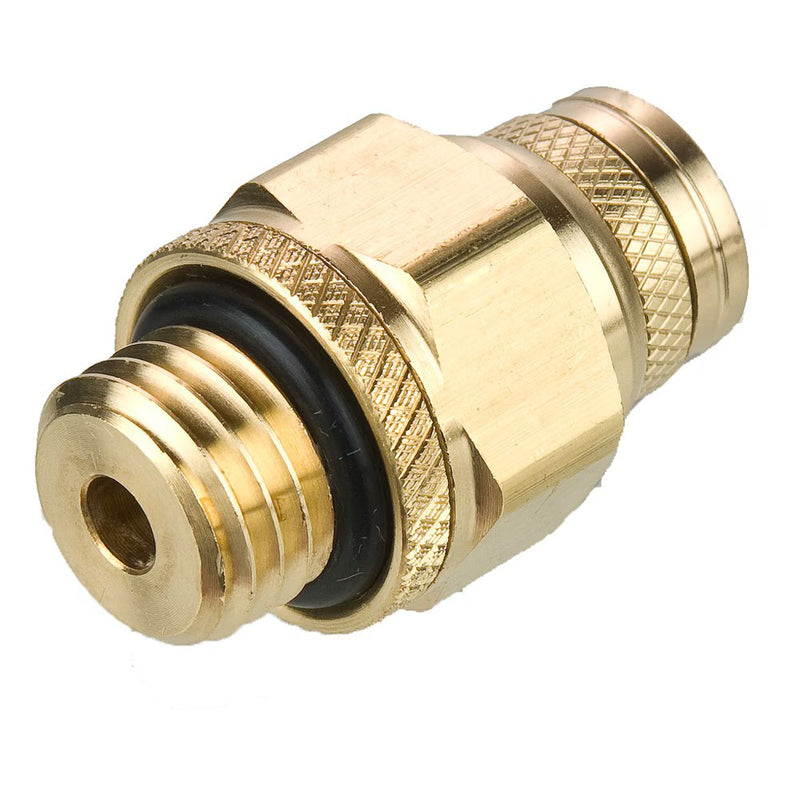

F8UPMTB10-M22 by Parker | Threaded Fitting | 10 mm Push-to-Connect Connector x M22 Male Metrics Thread | 27 mm Hex | 31.1 mm Length | Straight | Brass | Pack of 10

F8UPMTB10-M22 by Parker | Threaded Fitting | 10 mm Push-to-Connect Connector x M22 Male Metrics Thread | 27 mm Hex | 31.1 mm Length | Straight | Brass | Pack of 10

Save $457.60 Save $457.60
$1,144.00
$1,144.00 - $1,144.00
$1,144.00
$686.40
$686.40 - $686.40
$686.40

by Parker Hannifin
Metric Prestomatic Fittings:Male Connector Metric Straight Thread F8UPMTB

Package Quantity: 10 Units

Specifications for Variant SKU: F8UPMTB10-M22 Parker | 10 |
Brand: Prestomatic
Series: F8UPMTB Series
Shape (Orientation): Straight
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets DIN 74324
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • DIN 73378 Virgin Nylon
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Metric Thread L Hex (B) M1
F8UPMTB6-M10 6 mm M10X1 29.7 mm 17 mm 6.4 mm
F8UPMTB6-M12 6 mm M12X1.5 29.1 mm 17 mm 7.5 mm
F8UPMTB6-M22 6 mm M22X1.5 29.7 mm 27 mm 9.5 mm
F8UPMTB8-M16 8 mm M16X1.5 31.0 mm 22 mm 10.0 mm
F8UPMTB10-M16 10 mm M16X1.5 37.5 mm 22 mm 10.0 mm
F8UPMTB10-M22 10 mm M22X1.5 31.1 mm 27 mm 9.5 mm
F8UPMTB12-M12 12 mm M12X1.5 37.3 mm 22 mm 7.5 mm
F8UPMTB12-M22 12 mm M22X1.5 33.4 mm 27 mm 9.5 mm
F8UPMTB16-M22 6 mm M22X1.5 33.3 mm 27 mm 9.5 mm
