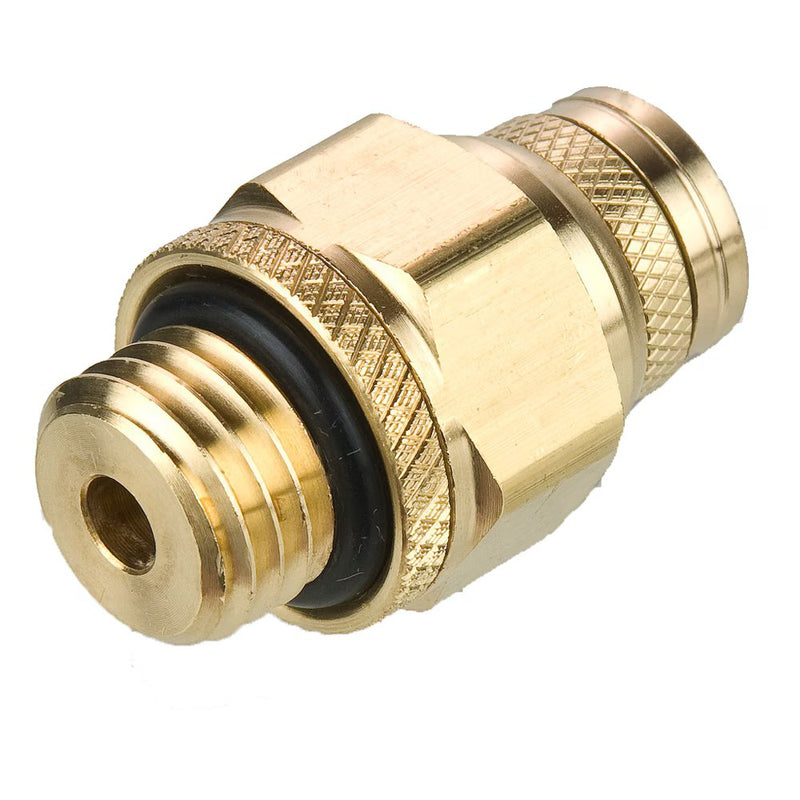

F8UPMTB6-M10 by Parker | Threaded Fitting | 6 mm Push-to-Connect Connector x M10 Male Metrics Thread | 17 mm Hex | 29.7 mm Length | Straight | Brass | Pack of 10

F8UPMTB6-M10 by Parker | Threaded Fitting | 6 mm Push-to-Connect Connector x M10 Male Metrics Thread | 17 mm Hex | 29.7 mm Length | Straight | Brass | Pack of 10

Save $135.77 Save $135.77
$339.43
$339.43 - $339.43
$339.43
$203.66
$203.66 - $203.66
$203.66

by Parker Hannifin
Metric Prestomatic Fittings:Male Connector Metric Straight Thread F8UPMTB

Package Quantity: 10 Units

Specifications for Variant SKU: F8UPMTB6-M10 Parker | 10 |
Brand: Prestomatic
Series: F8UPMTB Series
Shape (Orientation): Straight
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets DIN 74324
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • DIN 73378 Virgin Nylon
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Metric Thread L Hex (B) M1
F8UPMTB6-M10 6 mm M10X1 29.7 mm 17 mm 6.4 mm
F8UPMTB6-M12 6 mm M12X1.5 29.1 mm 17 mm 7.5 mm
F8UPMTB6-M22 6 mm M22X1.5 29.7 mm 27 mm 9.5 mm
F8UPMTB8-M16 8 mm M16X1.5 31.0 mm 22 mm 10.0 mm
F8UPMTB10-M16 10 mm M16X1.5 37.5 mm 22 mm 10.0 mm
F8UPMTB10-M22 10 mm M22X1.5 31.1 mm 27 mm 9.5 mm
F8UPMTB12-M12 12 mm M12X1.5 37.3 mm 22 mm 7.5 mm
F8UPMTB12-M22 12 mm M22X1.5 33.4 mm 27 mm 9.5 mm
F8UPMTB16-M22 6 mm M22X1.5 33.3 mm 27 mm 9.5 mm
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
