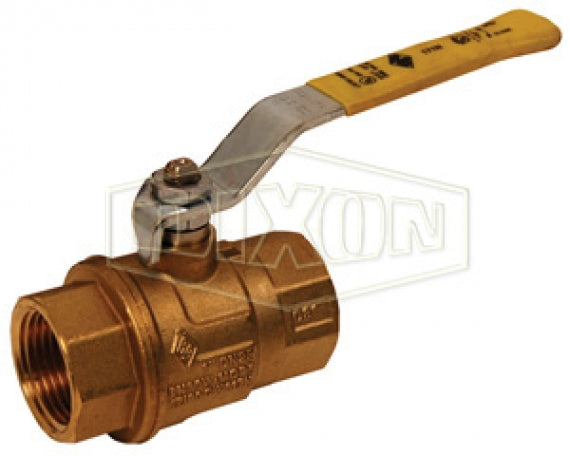

FBV100 by Dixon Valve | Imported Ball Valve | Full Port | 1" Female NPT x 1" Female NPT | Forged Brass

Name: FBV100 by Dixon Valve | Imported Ball Valve | Full Port | 1" Female NPT x 1" Female NPT | Forged Brass
Brand: Dixon
SKU: FBV100 Dixon
Price: 45.24 USD
Availability: InStock

Save $3.93

$49.17

$49.17 - $49.17

$49.17

$45.24

$45.24 - $45.24

$45.24

Dixon Valve & Coupling
Imported Ball Valve | Forged Brass

For control of air, water, oil, and gas in hose or pipe lines.

Quantity

Specifications for Variant SKU: FBV100 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Female NPT, Some Ends Match
Material(s):	Forged Brass
Seal Material(s):	PTFE

Features:
Blow-out proof stem.
Materials:
PTFE seat, seal and thrust washer. Chrome-plated brass ball and plated steel handle.
Specifications:
Maximum temperature: 366°F (186°C). Pressure rating: 600 PSI WOG; 150 PSI Working Steam Pressure. UL listed.

Part Number	Female NPT x Female NPT	Port
FBV25	1/4"	Full
FBV38	3/8"	Full
FBV50	1/2"	Full
FBV75	3/4"	Full
FBV100	1"	Full
FBV125	1-1/4"	Full
FBV150	1-1/2"	Full
FBV200	2"	Full
FBV250	2-1/2"	Full
FBV300	3"	Full
FBV400	4"	Full

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
