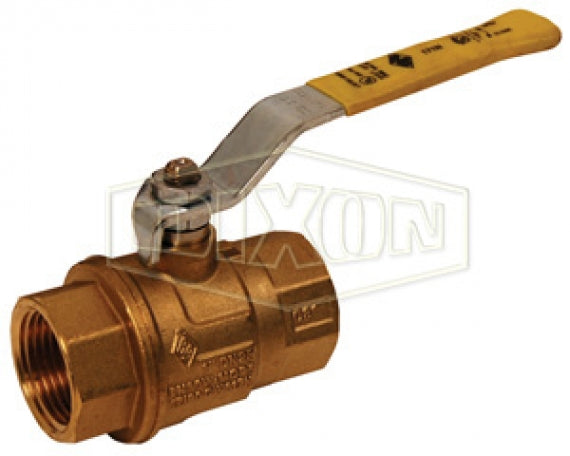

FBV400 by Dixon Valve | Imported Ball Valve | Full Port | 4" Female NPT x 4" Female NPT | Forged Brass

FBV400 by Dixon Valve | Imported Ball Valve | Full Port | 4" Female NPT x 4" Female NPT | Forged Brass

Save $578.43 Save $578.43
$1,446.08
$1,446.08 - $1,446.08
$1,446.08
$867.65
$867.65 - $867.65
$867.65

Dixon Valve & Coupling
Imported Ball Valve | Forged Brass

For control of air, water, oil, and gas in hose or pipe lines.
Specifications for Variant SKU: FBV400 Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Female NPT, 4in Female NPT, Some Ends Match
Material(s): Forged Brass
Seal Material(s): PTFE
Features:
  • Blow-out proof stem.
Materials:
  • PTFE seat, seal and thrust washer.
  • Chrome-plated brass ball and plated steel handle.
Specifications:
  • Maximum temperature: 366°F (186°C).
  • Pressure rating: 600 PSI WOG; 150 PSI Working Steam Pressure.
  • UL listed.
Part Number Female NPT x Female NPT Port
FBV25 1/4" Full
FBV38 3/8" Full
FBV50 1/2" Full
FBV75 3/4" Full
FBV100 1" Full
FBV125 1-1/4" Full
FBV150 1-1/2" Full
FBV200 2" Full
FBV250 2-1/2" Full
FBV300 3" Full
FBV400 4" Full
