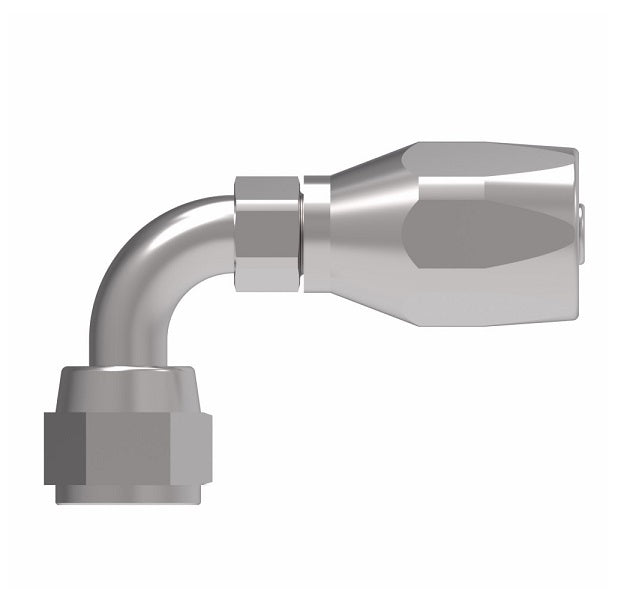

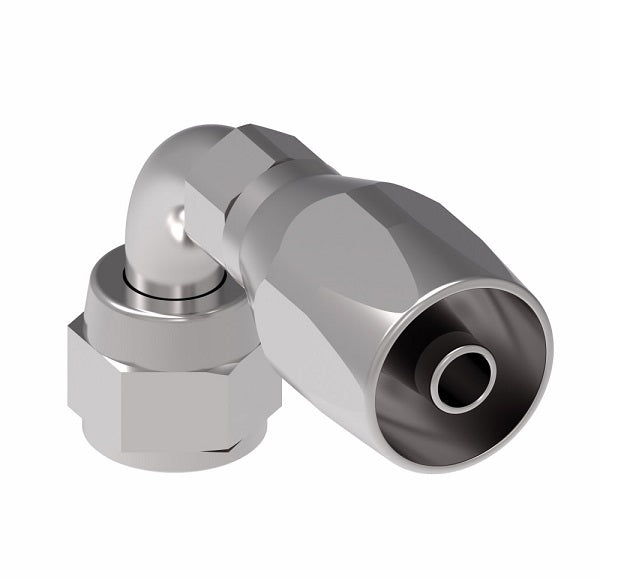

FC5143-0808S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Short Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel -08 Reusable Hose End | Steel

FC5143-0808S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Short Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel -08 Reusable Hose End | Steel | Pack of 10

$584.10 - $584.10

$584.10

$584.10 - $584.10

$584.10

Aeroquip® by Danfoss
2 Wire Hi-Pac Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FC5143-0808S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female JIC, 1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel, Short Drop
Compatible with the following Series:	FC310 Series \| FC510 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H
FC5143-0404S	-04	7/16-20	2.36"	1.15"	0.17"	0.68"
FC5143-0606S	-06	9/16-18	2.72"	1.25"	0.31"	0.85"
FC5143-0808S	-08	3/4-16	3.02"	1.38"	0.39"	1.09"
FC5143-1212S	-12	1-1/16-12	4.11"	2.24"	0.61"	1.82"
FC5143-1616S	-16	1-5/16-12	4.84"	2.73"	0.82"	2.39"
