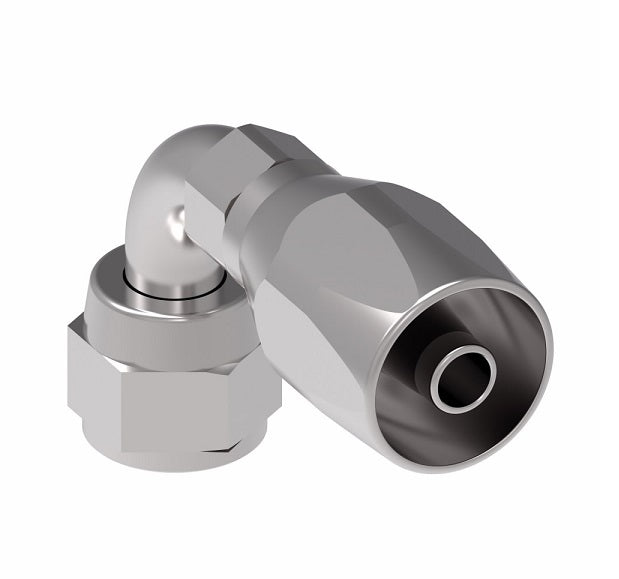

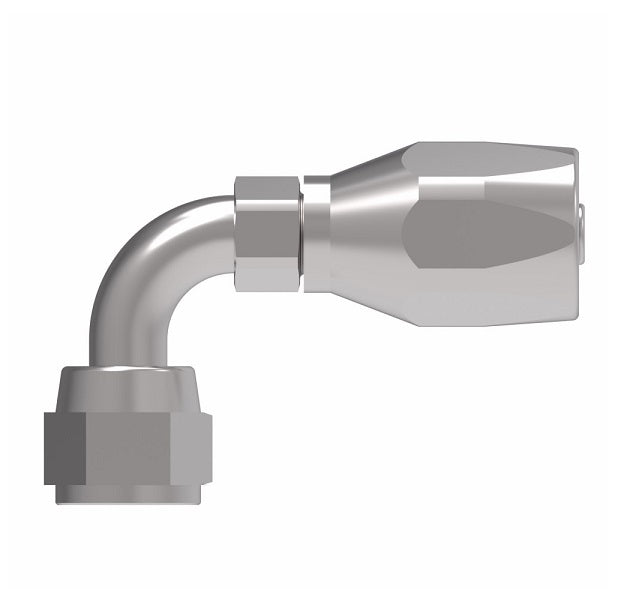

FC5143-1616S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Short Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -16 Female 37° JIC Swivel -16 Reusable Hose End | Steel
FC5143-1616S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Short Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -16 Female 37° JIC Swivel -16 Reusable Hose End | Steel
FC5143-1616S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Short Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -16 Female 37° JIC Swivel -16 Reusable Hose End | Steel
FC5143-1616S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Short Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -16 Female 37° JIC Swivel -16 Reusable Hose End | Steel

FC5143-1616S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Short Drop 90° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -16 Female 37° JIC Swivel -16 Reusable Hose End | Steel

$136.20 - $136.20
$136.20
$136.20 - $136.20
$136.20

Aeroquip® by Danfoss
2 Wire Hi-Pac Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC5143-1616S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female JIC, 1in Reusable Hose End
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: FC310 Series  |   FC510 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
FC5143-0404S -04 7/16-20 2.36" 1.15" 0.17" 0.68"
FC5143-0606S -06 9/16-18 2.72" 1.25" 0.31" 0.85"
FC5143-0808S -08 3/4-16 3.02" 1.38" 0.39" 1.09"
FC5143-1212S -12 1-1/16-12 4.11" 2.24" 0.61" 1.82"
FC5143-1616S -16 1-5/16-12 4.84" 2.73" 0.82" 2.39"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
