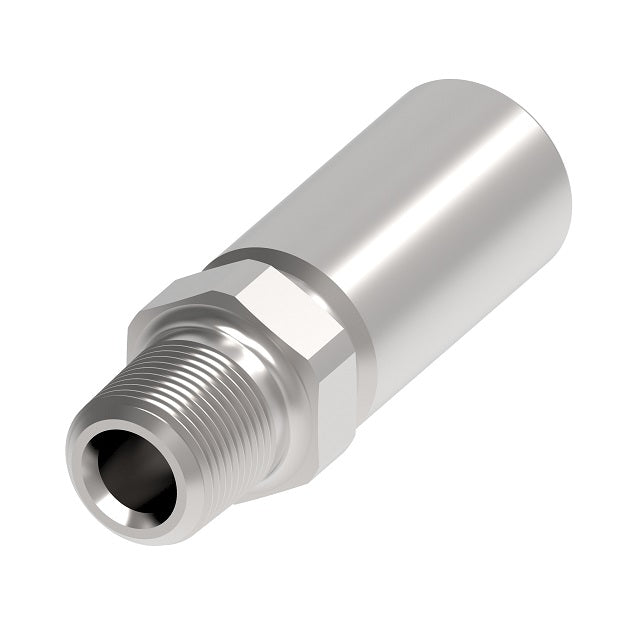

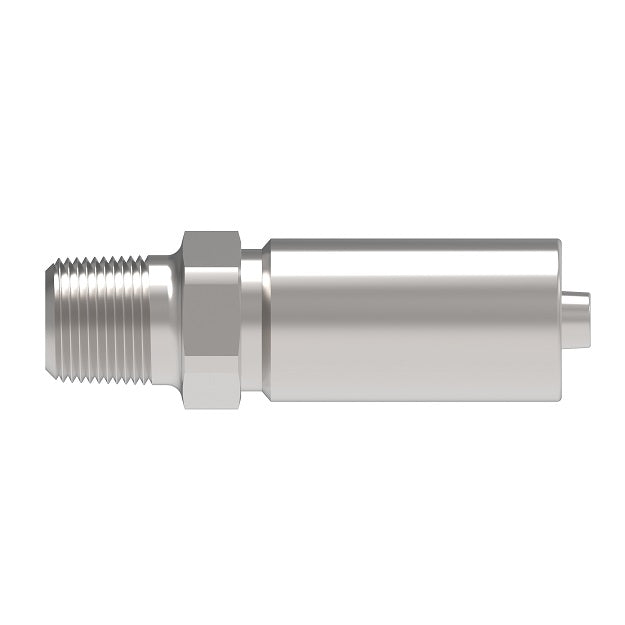

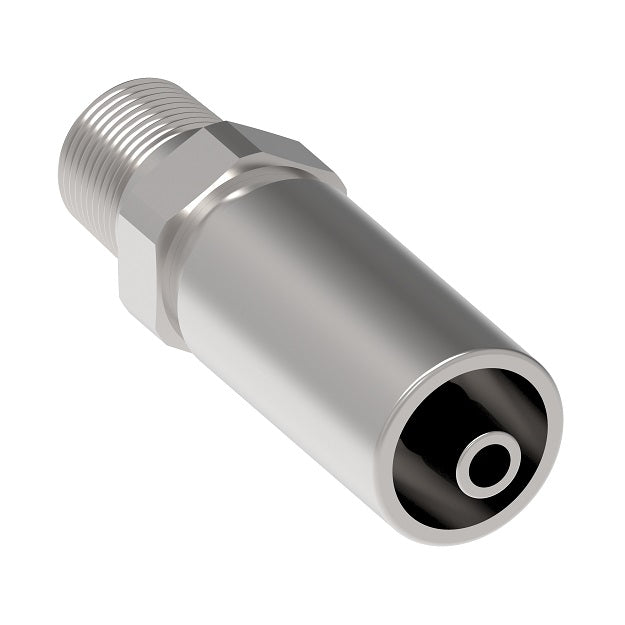

FC5805-0403S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -04 Male NPTF x -03 Hose Barb | Carbon Steel

FC5805-0403S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -04 Male NPTF x -03 Hose Barb | Carbon Steel

Name: FC5805-0403S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -04 Male NPTF x -03 Hose Barb | Carbon Steel
Brand: Danfoss/Eaton
SKU: FC5805-0403S Danfoss
Price: 25.69 USD
Availability: InStock

$25.69 - $25.69

$25.69

$25.69 - $25.69

$25.69

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Male NPTF - Straight

Quantity

Specifications for Variant SKU: FC5805-0403S Danfoss
Brand:	Aeroquip
Ends Configuration:	1/4in Male NPTF, 3/16in Hose Barb
Material(s):	Carbon Steel
Compatible with the following Series:	3130 Series \| 37AL Series \| 3740 Series

Part Number Carbon Steel	Part Number Stainless Steel	Compatible Hose ID	Hose Dash Size	Inside Diameter
FC5805-0202S	-	0.125"	-02	0.08"
FC5805-0203S	-	0.125"	-02	0.10"
FC5805-0204S	-	-	-02	-
FC5805-0403S	-	0.25"	-04	0.10"
FC5805-0404S	-	0.25"	-04	0.15"
FC5805-0405S	-	0.25"	-04	0.22"
FC5805-0406S	-	0.375"	-06	0.28"
FC5805-0604S	-	0.25"	-04	0.15"
FC5805-0605S	-	0.375"	-06	0.22"
FC5805-0606S	FC5805-0606-259	0.375"	-06	0.28"
FC5805-0806S	-	0.375"	-06	0.28"
FC5805-0808S	-	0.5"	-08	0.38"
FC5805-1212S	-	0.75"	-12	0.59"
FC5805-1616S	-	1"	-16	0.78"
