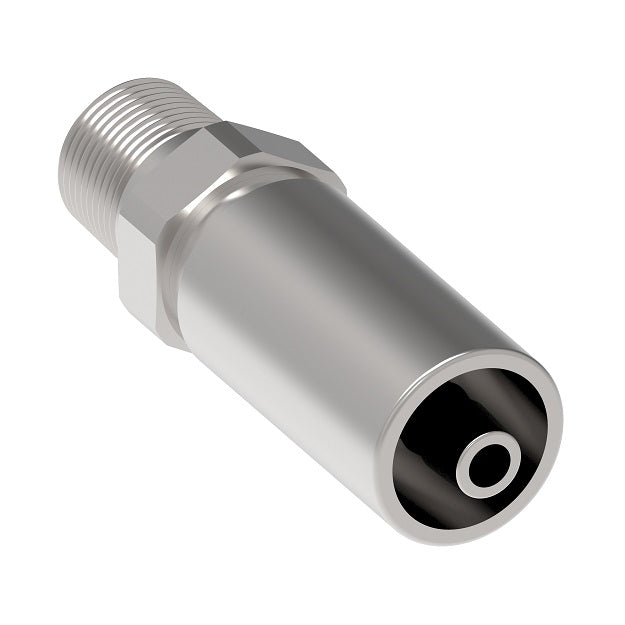

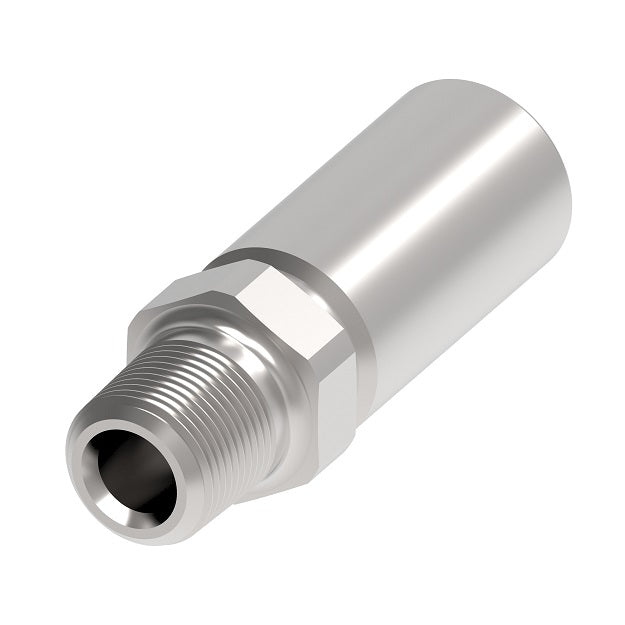

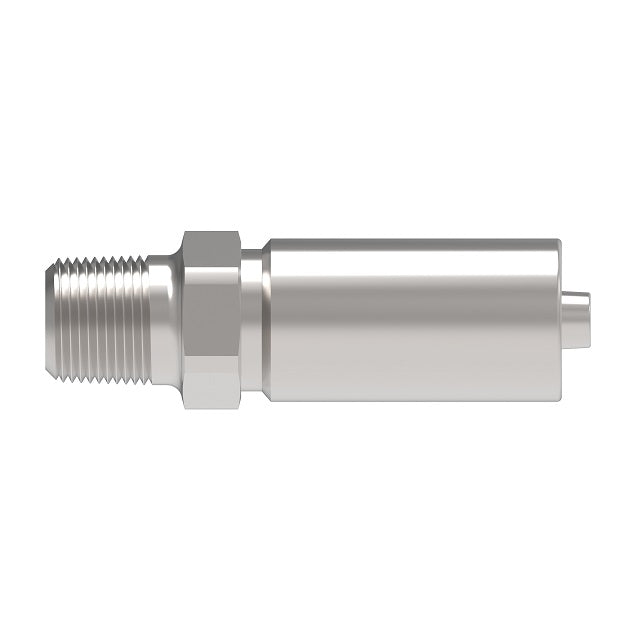

FC5805-0808S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -08 Male NPTF x -08 Hose Barb | Carbon Steel

FC5805-0808S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -08 Male NPTF x -08 Hose Barb | Carbon Steel | Pack of 10

Minimum Order Quantity: 10 Units

$472.60 - $472.60

$472.60

$472.60 - $472.60

$472.60

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Male NPTF - Straight

Specifications for Variant SKU: FC5805-0808S Danfoss \| 10 \|
Brand:	Aeroquip
Ends Configuration:	1/2in Male NPTF, 1/2in Hose Barb
Material(s):	Carbon Steel
Compatible with the following Series:	3130 Series \| 37AL Series \| 3740 Series

Part Number Carbon Steel	Part Number Stainless Steel	Compatible Hose ID	Hose Dash Size	Inside Diameter
FC5805-0202S	-	0.125"	-02	0.08"
FC5805-0203S	-	0.125"	-02	0.10"
FC5805-0204S	-	-	-02	-
FC5805-0403S	-	0.25"	-04	0.10"
FC5805-0404S	-	0.25"	-04	0.15"
FC5805-0405S	-	0.25"	-04	0.22"
FC5805-0406S	-	0.375"	-06	0.28"
FC5805-0604S	-	0.25"	-04	0.15"
FC5805-0605S	-	0.375"	-06	0.22"
FC5805-0606S	FC5805-0606-259	0.375"	-06	0.28"
FC5805-0806S	-	0.375"	-06	0.28"
FC5805-0808S	-	0.5"	-08	0.38"
FC5805-1212S	-	0.75"	-12	0.59"
FC5805-1616S	-	1"	-16	0.78"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
