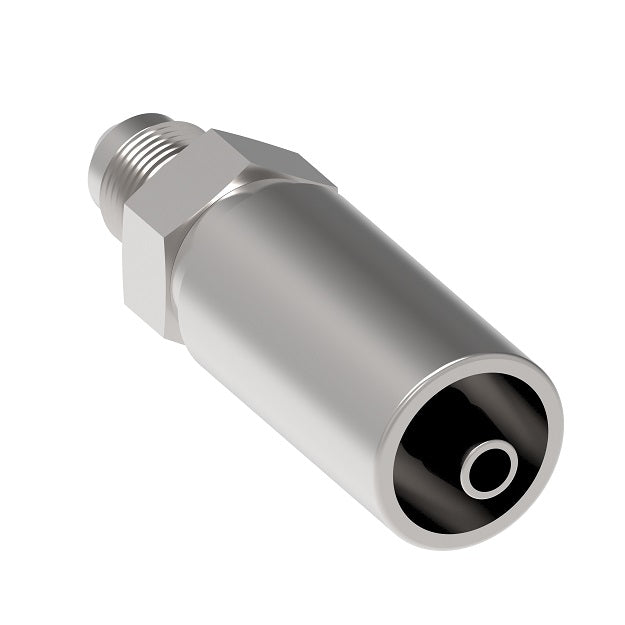

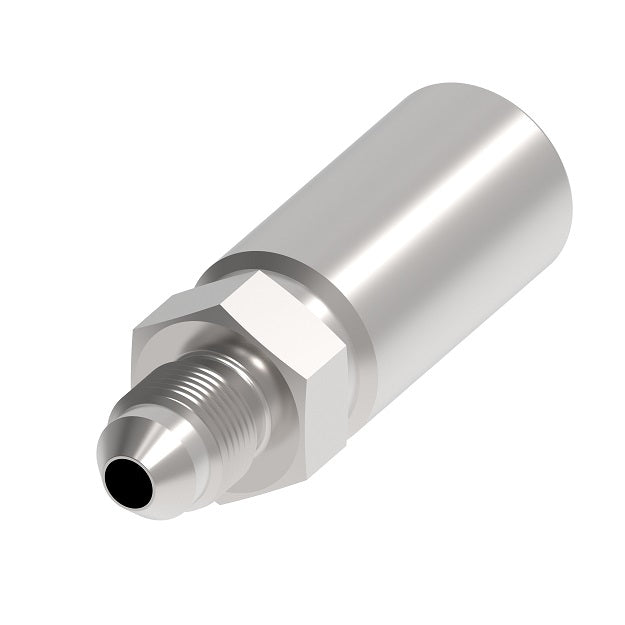

FC5807-0605S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -06 Male 37° JIC x -05 Hose Barb | Carbon Steel

FC5807-0605S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -06 Male 37° JIC x -05 Hose Barb | Carbon Steel

Name: FC5807-0605S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -06 Male 37° JIC x -05 Hose Barb | Carbon Steel
Brand: Danfoss/Eaton
SKU: FC5807-0605S Danfoss
Price: 51.64 USD
Availability: InStock

$51.64 - $51.64

$51.64

$51.64 - $51.64

$51.64

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Male 37° JIC - Straight

Specifications for Variant SKU: FC5807-0605S Danfoss
Brand:	Aeroquip
Ends Configuration:	3/8in Male JIC, 5/16in Hose Barb
Material(s):	Carbon Steel
Compatible with the following Series:	3130 Series \| 37AL Series \| 3740 Series \| FC370 Series

Part Number Carbon Steel	Compatible Hose ID	Hose Dash Size	Inside Diameter	Outside Diameter	Hex Size
FC5807-0403S	0.25"	-04	0.10"	-	0.56"
FC5807-0404S	0.25"	-04	0.15"	0.6875"	0.62"
FC5807-0504S	0.3125"	-05	0.15"	0.6875"	0.62"
FC5807-0505S	-	-05	-	-	-
FC5807-0604S	-	-06	-	-	-
FC5807-0605S	0.375"	-06	0.20"	-	0.69"
FC5807-0606S	-	-06	-	-	-
FC5807-0806S	0.375"	-06	0.28"	-	0.81"
FC5807-0808S	-	-08	-	-	-
FC5807-1212S	0.75"	-12	0.59"	-	1.12"
