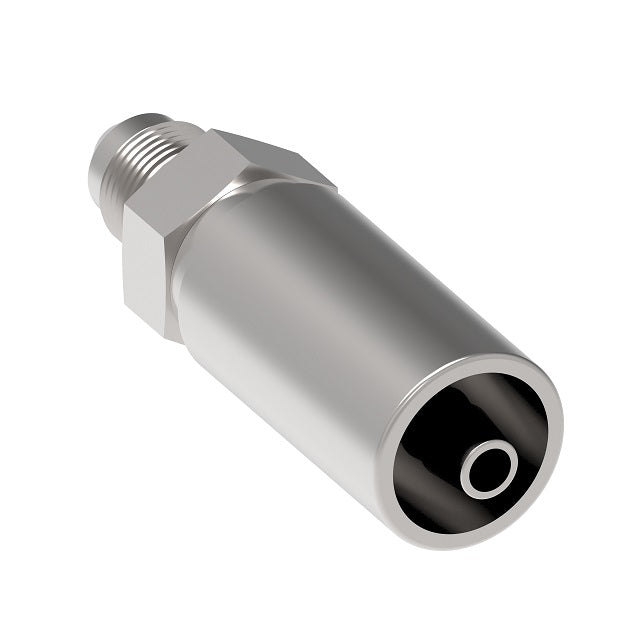

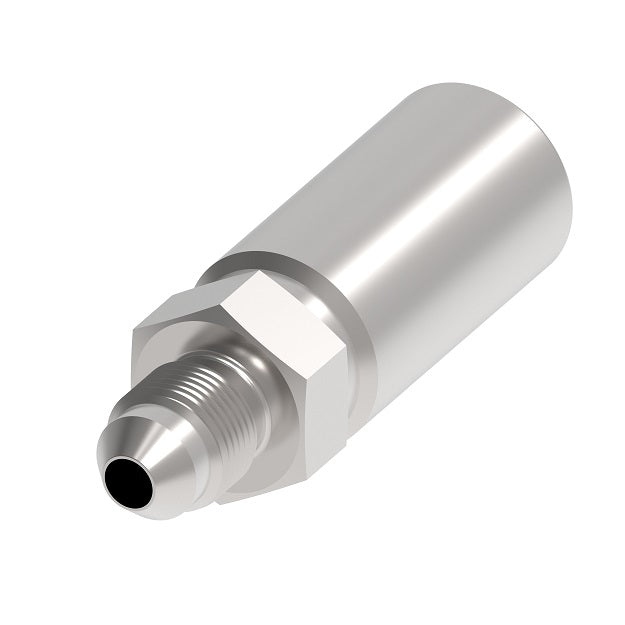

FC5807-1212S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -12 Male 37° JIC x -12 Hose Barb | Carbon Steel

FC5807-1212S Aeroquip by Danfoss | Thermoplastic Hose Crimp Fitting | -12 Male 37° JIC x -12 Hose Barb | Carbon Steel | Pack of 10

Minimum Order Quantity: 10 Units

$529.00 - $529.00

$529.00

$529.00 - $529.00

$529.00

Aeroquip by Danfoss
Thermoplastic Hose Crimp Fitting - Male 37° JIC - Straight

Specifications for Variant SKU: FC5807-1212S Danfoss \| 10 \|
Brand:	Aeroquip
Ends Configuration:	3/4in Male JIC, 3/4in Hose Barb
Material(s):	Carbon Steel
Compatible with the following Series:	3130 Series \| 37AL Series \| 3740 Series \| FC370 Series

Part Number Carbon Steel	Compatible Hose ID	Hose Dash Size	Inside Diameter	Outside Diameter	Hex Size
FC5807-0403S	0.25"	-04	0.10"	-	0.56"
FC5807-0404S	0.25"	-04	0.15"	0.6875"	0.62"
FC5807-0504S	0.3125"	-05	0.15"	0.6875"	0.62"
FC5807-0505S	-	-05	-	-	-
FC5807-0604S	-	-06	-	-	-
FC5807-0605S	0.375"	-06	0.20"	-	0.69"
FC5807-0606S	-	-06	-	-	-
FC5807-0806S	0.375"	-06	0.28"	-	0.81"
FC5807-0808S	-	-08	-	-	-
FC5807-1212S	0.75"	-12	0.59"	-	1.12"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
