FC5985-0606S Aeroquip by Danfoss | Male Pipe 100R2 TTC Reusable Hose Fitting | FC Series | -06 Male Pipe x -06 Reusable Hose End | Steel

FC5985-0606S Aeroquip by Danfoss | Male Pipe 100R2 TTC Reusable Hose Fitting | FC Series | -06 Male Pipe x -06 Reusable Hose End | Steel

Name: FC5985-0606S Aeroquip by Danfoss | Male Pipe 100R2 TTC Reusable Hose Fitting | FC Series | -06 Male Pipe x -06 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC5985-0606S Danfoss
Price: 29.64 USD
Availability: InStock

$29.64 - $29.64

$29.64

$29.64 - $29.64

$29.64

Aeroquip® by Danfoss

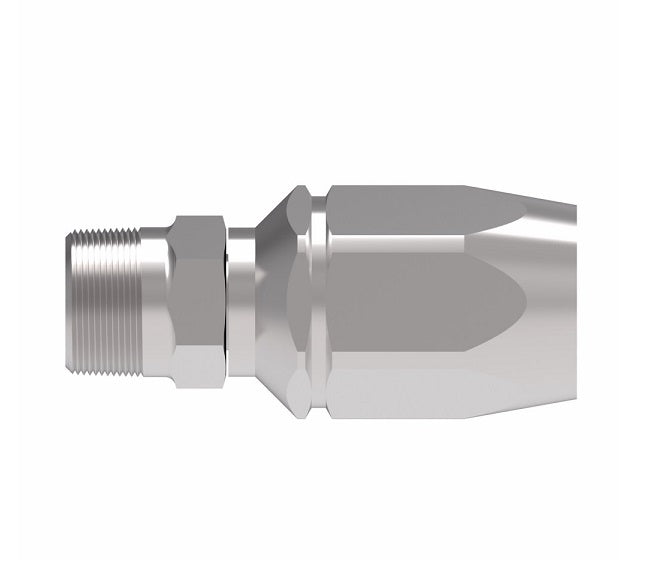

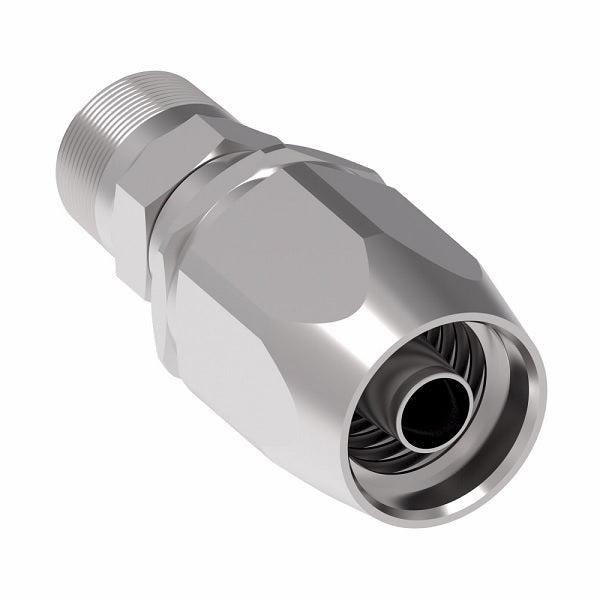

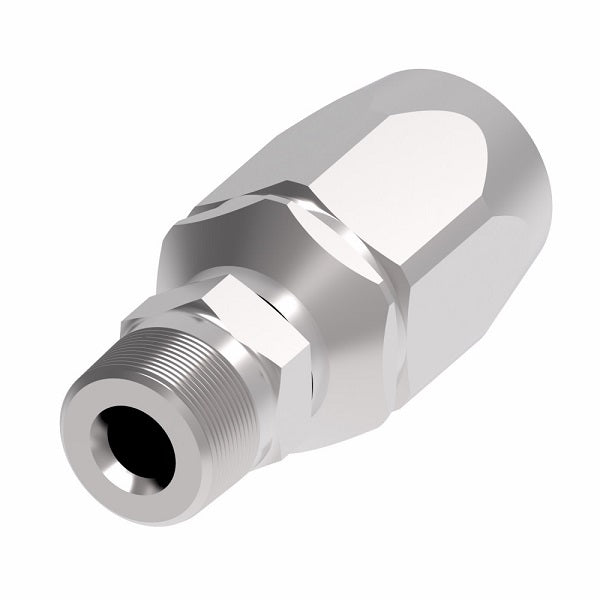

100R2 TTC Reusable Hose Fitting - FC Series - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC5985-0606S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPT, 3/8in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	GH793 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with GH793 hose ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ
FC5985-0404S	-04	1/4-18	2.50"	1.33"	0.17"
FC5985-0606S	-06	3/8-18	2.75"	1.41"	0.31"
FC5985-0608S	-08	3/8-18	2.84"	1.31"	0.39"
FC5985-0808S	-08	1/2-14	3.09"	1.58"	0.39"
FC5985-1212S	-12	3/4-14	3.61"	1.74"	0.61"
FC5985-1616S	-16	1-11-1/2	4.40"	2.35"	0.82"
