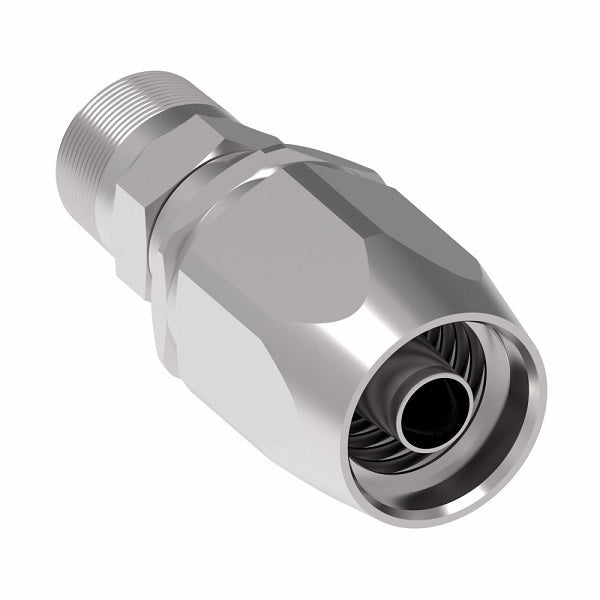

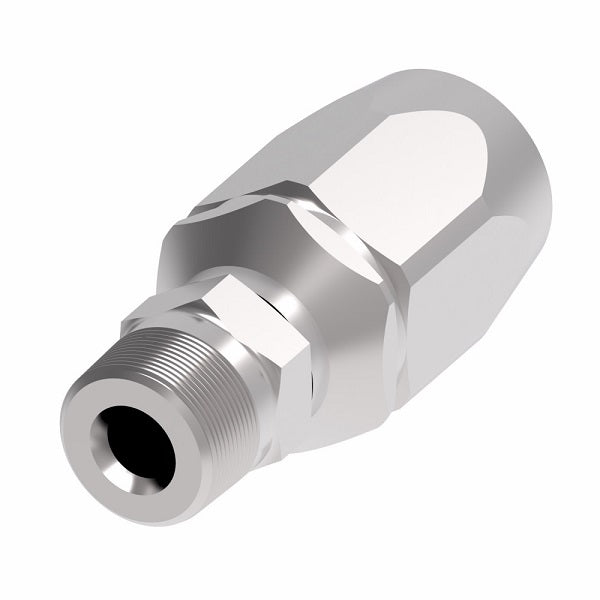

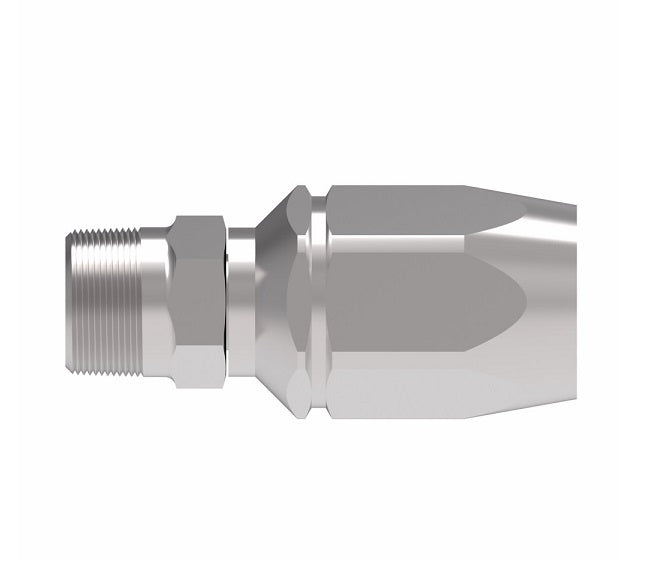

FC5985-0808S Aeroquip by Danfoss | Male Pipe 100R2 TTC Reusable Hose Fitting | FC Series | -08 Male Pipe x -08 Reusable Hose End | Steel

FC5985-0808S Aeroquip by Danfoss | Male Pipe 100R2 TTC Reusable Hose Fitting | FC Series | -08 Male Pipe x -08 Reusable Hose End | Steel

Name: FC5985-0808S Aeroquip by Danfoss | Male Pipe 100R2 TTC Reusable Hose Fitting | FC Series | -08 Male Pipe x -08 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC5985-0808S Danfoss
Price: 29.24 USD
Availability: InStock

$29.24 - $29.24

$29.24

$29.24 - $29.24

$29.24

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FC Series - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC5985-0808S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT, 1/2in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	GH793 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with GH793 hose ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ
FC5985-0404S	-04	1/4-18	2.50"	1.33"	0.17"
FC5985-0606S	-06	3/8-18	2.75"	1.41"	0.31"
FC5985-0608S	-08	3/8-18	2.84"	1.31"	0.39"
FC5985-0808S	-08	1/2-14	3.09"	1.58"	0.39"
FC5985-1212S	-12	3/4-14	3.61"	1.74"	0.61"
FC5985-1616S	-16	1-11-1/2	4.40"	2.35"	0.82"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
