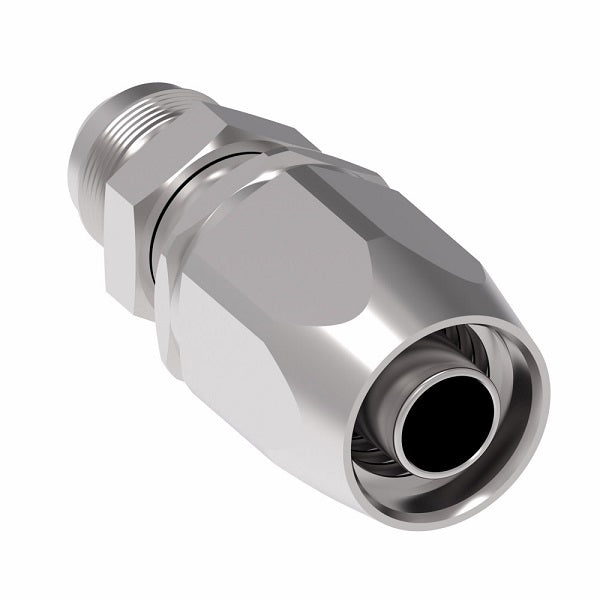

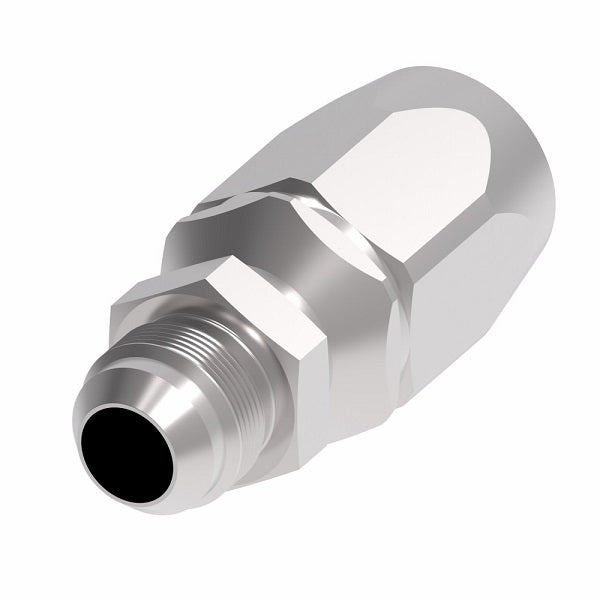

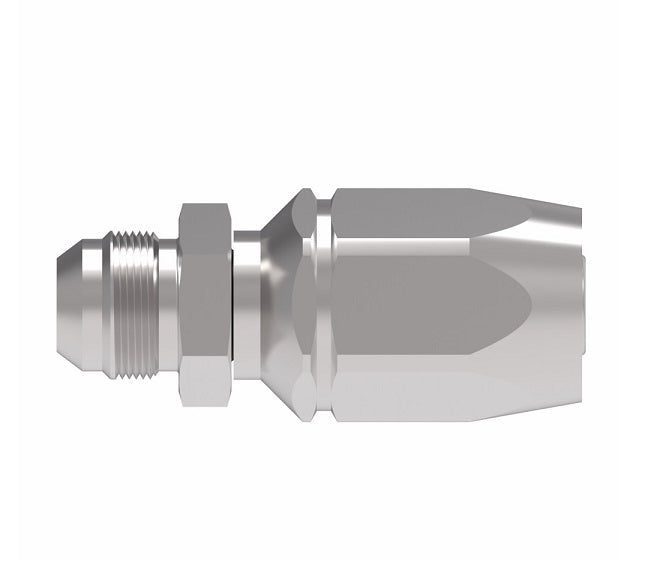

FC5986-0808S Aeroquip by Danfoss | Male 37° JIC Flare 100R2 TTC Reusable Hose Fitting | FC Series | -08 Male 37° JIC Flare x -08 Reusable Hose End | Steel

FC5986-0808S Aeroquip by Danfoss | Male 37° JIC Flare 100R2 TTC Reusable Hose Fitting | FC Series | -08 Male 37° JIC Flare x -08 Reusable Hose End | Steel

Name: FC5986-0808S Aeroquip by Danfoss | Male 37° JIC Flare 100R2 TTC Reusable Hose Fitting | FC Series | -08 Male 37° JIC Flare x -08 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC5986-0808S Danfoss
Price: 36.36 USD
Availability: InStock

$36.36 - $36.36

$36.36

$36.36 - $36.36

$36.36

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FC Series - Male 37° JIC Flare - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC5986-0808S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male JIC, 1/2in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	GH793 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with GH793 hose ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ
FC5986-0404S	-04	7/16-20	2.49"	1.32"	0.17"
FC5986-0606S	-06	9/16-18	2.75"	1.41"	0.30"
FC5986-0806S	-06	-	-	-	-
FC5986-0808S	-08	3/4-16	2.99"	1.48"	0.39"
FC5986-1008S	-12	-	-	-	-
FC5986-1212S	-12	1-1/16-12	3.72"	1.85"	0.61"
FC5986-1616S	-16	1-5/16-12	4.38"	2.33"	0.82"
