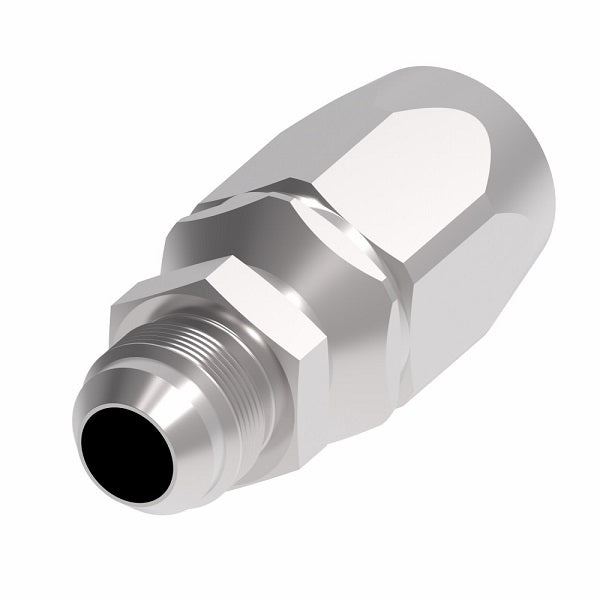

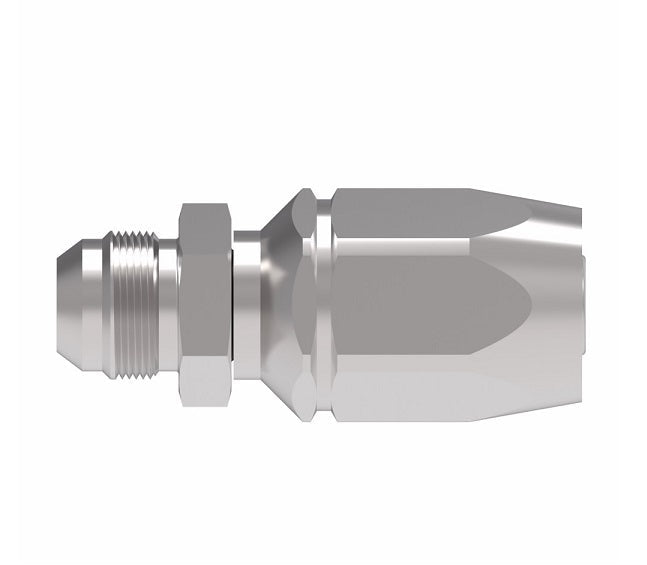

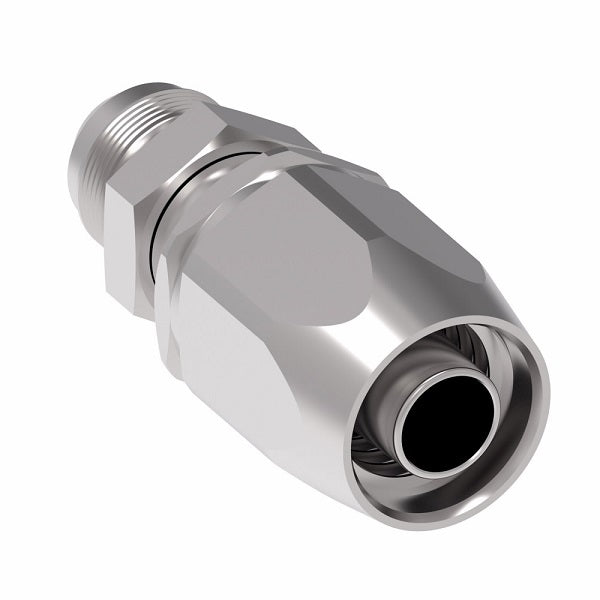

FC5986-1616S Aeroquip by Danfoss | Male 37° JIC Flare 100R2 TTC Reusable Hose Fitting | FC Series | -16 Male 37° JIC Flare x -16 Reusable Hose End | Steel

FC5986-1616S Aeroquip by Danfoss | Male 37° JIC Flare 100R2 TTC Reusable Hose Fitting | FC Series | -16 Male 37° JIC Flare x -16 Reusable Hose End | Steel

Name: FC5986-1616S Aeroquip by Danfoss | Male 37° JIC Flare 100R2 TTC Reusable Hose Fitting | FC Series | -16 Male 37° JIC Flare x -16 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC5986-1616S Danfoss
Price: 180.94 USD
Availability: InStock

$180.94 - $180.94

$180.94

$180.94 - $180.94

$180.94

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FC Series - Male 37° JIC Flare - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FC5986-1616S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1in Male JIC, 1in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	GH793 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with GH793 hose ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ
FC5986-0404S	-04	7/16-20	2.49"	1.32"	0.17"
FC5986-0606S	-06	9/16-18	2.75"	1.41"	0.30"
FC5986-0806S	-06	-	-	-	-
FC5986-0808S	-08	3/4-16	2.99"	1.48"	0.39"
FC5986-1008S	-12	-	-	-	-
FC5986-1212S	-12	1-1/16-12	3.72"	1.85"	0.61"
FC5986-1616S	-16	1-5/16-12	4.38"	2.33"	0.82"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
