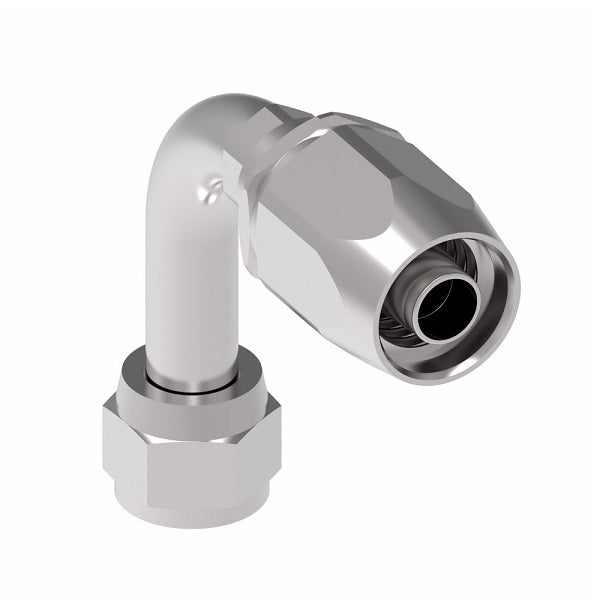

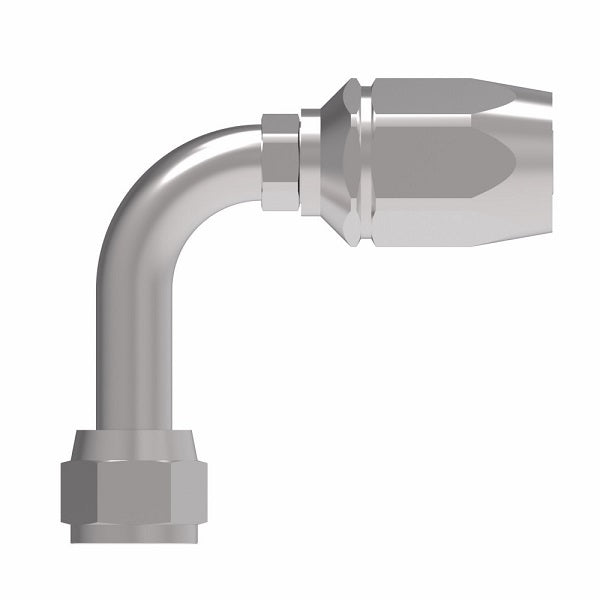

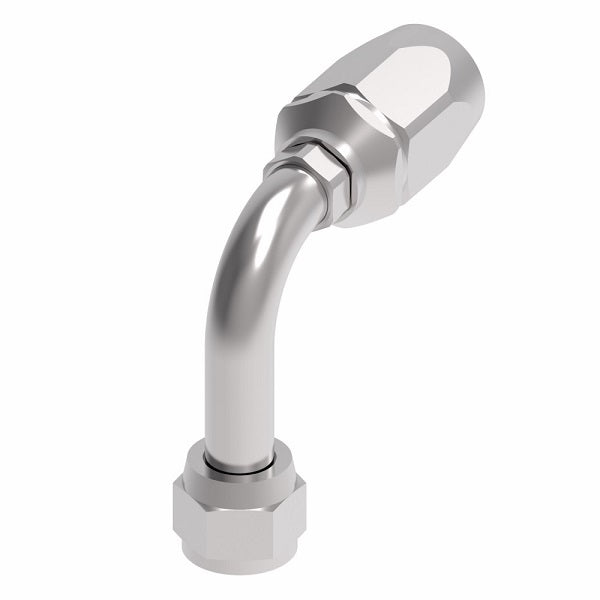

FC5991-0606S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
FC5991-0606S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
FC5991-0606S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel
FC5991-0606S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

FC5991-0606S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -06 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

$71.30 - $71.30
$71.30
$71.30 - $71.30
$71.30

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FC Series - Female 37° JIC Swivel Long Drop - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC5991-0606S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female JIC, 3/8in Reusable Hose End
Material(s): Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: GH793 Series
Technical Info:
Note:
  • For use with GH793 hose ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ H
FC5991-0404S -04 7/16-20 2.40" 1.23" 0.17" 1.80"
FC5991-0606S -06 9/16-18 2.72" 1.38" 0.31" 2.18"
FC5991-0808S -08 3/4-16 3.15" 1.64" 0.39" 2.43"
FC5991-1212S -12 1-1/16-12 4.11" 2.24" 0.61" 3.73"
FC5991-1616S -16 1-5/16-12 4.84" 2.79" 0.82" 4.58"
