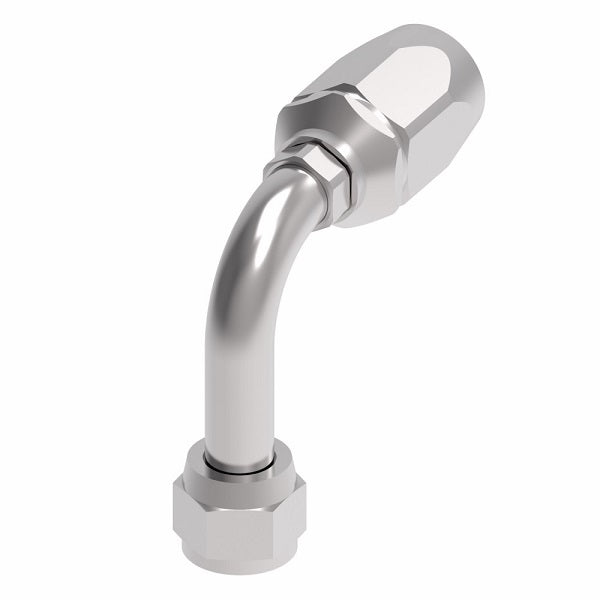

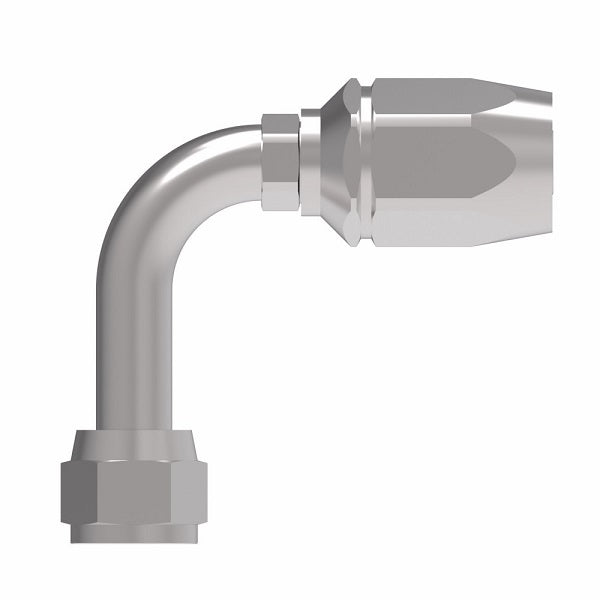

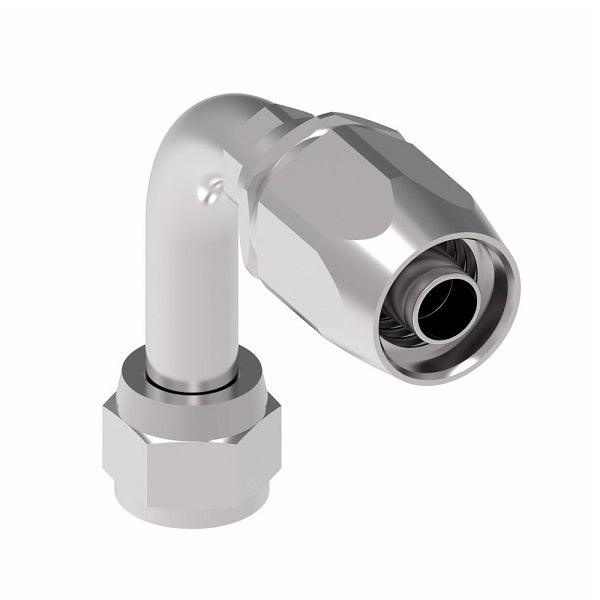

FC5991-1212S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

FC5991-1212S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

Name: FC5991-1212S Aeroquip by Danfoss | Female 37° JIC Swivel Long Drop 90° Elbow 100R2 TTC Reusable Hose Fitting | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC5991-1212S Danfoss
Price: 133.08 USD
Availability: InStock

$133.08 - $133.08

$133.08

$133.08 - $133.08

$133.08

Aeroquip® by Danfoss
100R2 TTC Reusable Hose Fitting - FC Series - Female 37° JIC Swivel Long Drop - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC5991-1212S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel, Long Drop
Compatible with the following Series:	GH793 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with GH793 hose ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ	H
FC5991-0404S	-04	7/16-20	2.40"	1.23"	0.17"	1.80"
FC5991-0606S	-06	9/16-18	2.72"	1.38"	0.31"	2.18"
FC5991-0808S	-08	3/4-16	3.15"	1.64"	0.39"	2.43"
FC5991-1212S	-12	1-1/16-12	4.11"	2.24"	0.61"	3.73"
FC5991-1616S	-16	1-5/16-12	4.84"	2.79"	0.82"	4.58"
