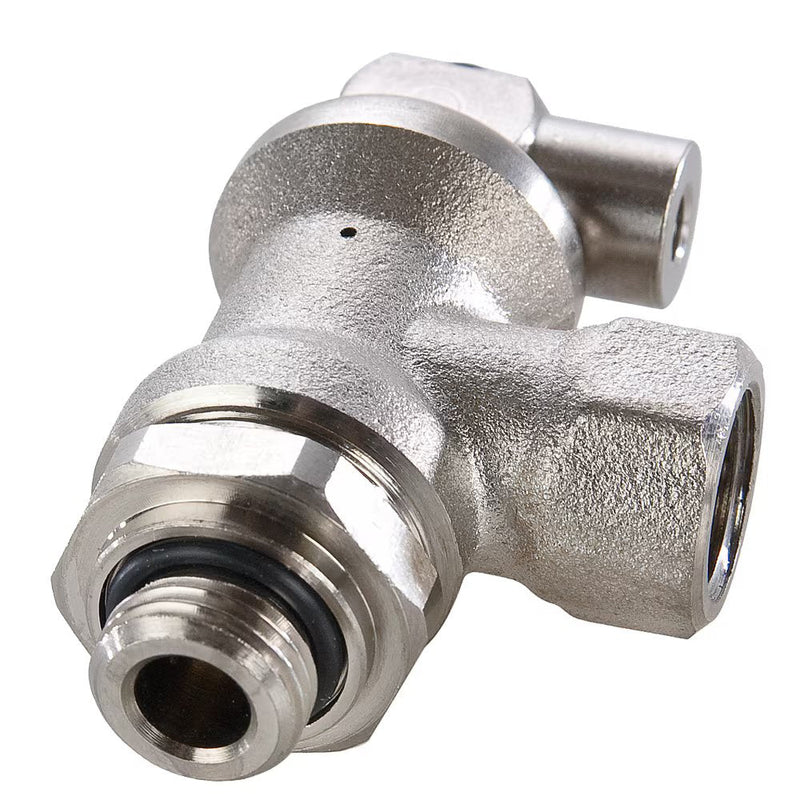

FC608-4G-4G by Parker | Threaded Port Lock Out Valve | 1/4" Male BSPP Thread x 1/4" Female BSPP Thread | 53 mm Length | Multi-Plane Swivel | Brass

FC608-4G-4G by Parker | Threaded Port Lock Out Valve | 1/4" Male BSPP Thread x 1/4" Female BSPP Thread | 53 mm Length | Multi-Plane Swivel | Brass

Save $119.52 Save $119.52
$298.80
$298.80 - $298.80
$298.80
$179.28
$179.28 - $179.28
$179.28

by Parker Hannifin
Blocking Valves:FC608 Threaded Port Lock-Out Valve - BSPP
Specifications for Variant SKU: FC608-4G-4G Parker
Series: FC608 Series
Shape (Orientation): Multi-Plane Swivel
Material(s): Brass, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel, Silicone Free, Valved
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • NBR seals
  • Silicone free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Packaging
  • Textile
  • Machine Tools
Pressure Range: 15 to 145 PSI (1.0 to 9.9 bar)
Temperature Range: -4° to +160° F (-20° to +71.1° C)
Leak Rate: <3.2CCM
Number of Cycles: >10 Million at 68°F and 1 HZ
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number BSPP BSPP Hex H H1 H2 L
FC608-4G-2G 1/8" 1/4" 21 mm 53 mm 24.5 mm 21.0 mm 28.0 mm
FC608-4G-4G 1/4" 1/4" 21 mm 53 mm 24.5 mm 21.0 mm 28.0 mm
FC608-6G-6G 3/8" 3/8" 24 mm 56 mm 25.0 mm 23.0 mm 34.0 mm
FC608-8G-8G 1/2" 1/2" 24 mm 56 mm 25.0 mm 23.0 mm 41.0 mm
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
