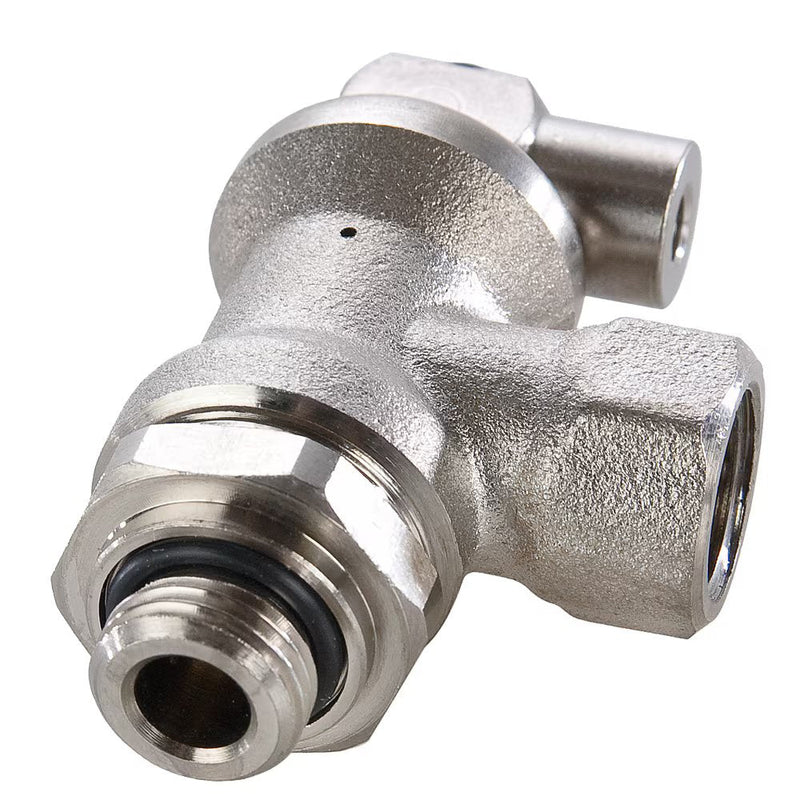

FC608-8G-8G by Parker | Threaded Port Lock Out Valve | 1/2" Male BSPP Thread x 1/2" Female BSPP Thread | 56 mm Length | Multi-Plane Swivel | Brass

FC608-8G-8G by Parker | Threaded Port Lock Out Valve | 1/2" Male BSPP Thread x 1/2" Female BSPP Thread | 56 mm Length | Multi-Plane Swivel | Brass

Save $257.30 Save $257.30
$643.25
$643.25 - $643.25
$643.25
$385.95
$385.95 - $385.95
$385.95

by Parker Hannifin
Blocking Valves:FC608 Threaded Port Lock-Out Valve - BSPP
Specifications for Variant SKU: FC608-8G-8G Parker
Series: FC608 Series
Shape (Orientation): Multi-Plane Swivel
Material(s): Brass, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Swivel, Silicone Free, Valved
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • NBR seals
  • Silicone free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Packaging
  • Textile
  • Machine Tools
Pressure Range: 15 to 145 PSI (1.0 to 9.9 bar)
Temperature Range: -4° to +160° F (-20° to +71.1° C)
Leak Rate: <3.2CCM
Number of Cycles: >10 Million at 68°F and 1 HZ
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number BSPP BSPP Hex H H1 H2 L
FC608-4G-2G 1/8" 1/4" 21 mm 53 mm 24.5 mm 21.0 mm 28.0 mm
FC608-4G-4G 1/4" 1/4" 21 mm 53 mm 24.5 mm 21.0 mm 28.0 mm
FC608-6G-6G 3/8" 3/8" 24 mm 56 mm 25.0 mm 23.0 mm 34.0 mm
FC608-8G-8G 1/2" 1/2" 24 mm 56 mm 25.0 mm 23.0 mm 41.0 mm
