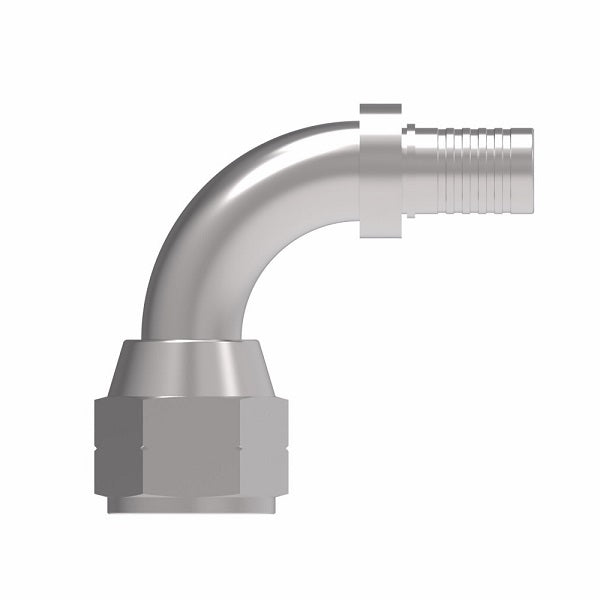

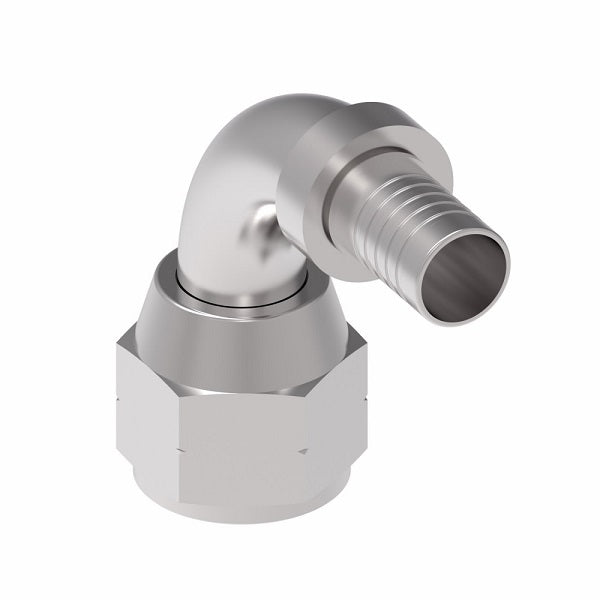

FC6217-1212S Aeroquip by Danfoss | Female SAE 45° Swivel 90° Elbow PTFE Crimp Fitting | FC Series | Nipple Assembly | -12 Female SAE 45° Swivel x -12 Hose Barb | Steel

FC6217-1212S Aeroquip by Danfoss | Female SAE 45° Swivel 90° Elbow PTFE Crimp Fitting | FC Series | Nipple Assembly | -12 Female SAE 45° Swivel x -12 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$500.40 - $500.40

$500.40

$500.40 - $500.40

$500.40

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female SAE 45° Swivel - 90° Elbow - Steel

FC Series

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC6217-1212S Danfoss \| 10 \|
Brand:	Aeroquip
Series:	FC Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Female SAE 45 Flare, 3/4in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	Swivel
Compatible with the following Series:	2807 Series \| FC465 Series \| S-TW Series \| SC-TW Series

Technical Info:
Crimp Fitting Socket Data.PDF


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number	Socket Part Number	Thread	Hose Size	A	D	E&Oslash	H	Hex 1
FC5098-0404S	FC4098-0404S	FC3596-04S	7/16-20	-04	1.28"	0.69"	0.12"	0.68"	9/16"
FC7217-0606S	FC6217-0606S	FC3443-05S	5/8-18	-06	1.31"	0.82"	0.25"	0.85"	3/4"
	FC6217-1212S	-	1-1/16-14	-12	-	-	-	-	-

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
