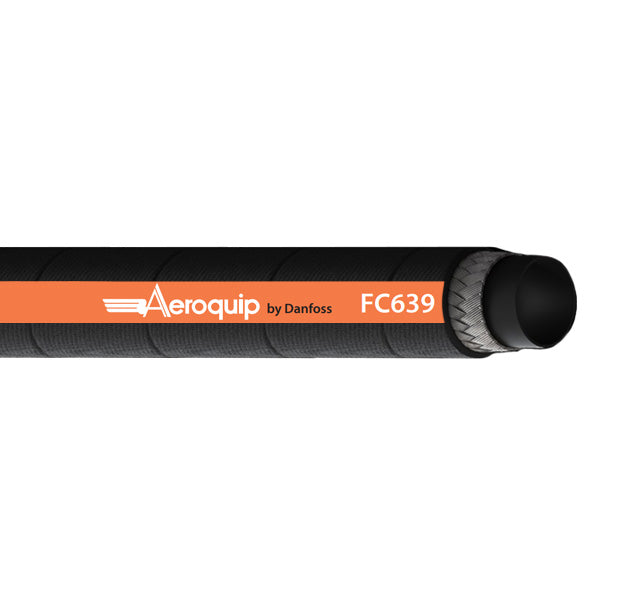

FC639-08 Aeroquip by Danfoss | MatchMate® Global 3000 PSI Constant Pressure Single Wire Braid Hydraulic Hose | SAE 100R1 | 0.50" ID

FC639-08 Aeroquip by Danfoss | MatchMate® Global 3000 PSI Constant Pressure Single Wire Braid Hydraulic Hose | SAE 100R1 | 0.50" ID

Minimum Order Quantity: 500 Feet

$6.15 - $6.15
$6.15
$6.15 - $6.15
$6.15

Aeroquip® by Danfoss
FC639 Series | MatchMate® Global 3000 PSI Constant Pressure Wire Braid Hydraulic Hose

Recommended for highpressure oil lines used on construction equipment and other off-highway applications.

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Specifications for Variant SKU: FC639-08RL Danfoss
Brand: Aeroquip, MatchMate
Series: FC639 Series
Hose Color(s): Black
Dash Size: -8
Internal Diameter: 0.50in
Outer Diameter: 0.81in
Tubing Construction: Synthetic Rubber
Cover Construction: Neoprene
Applicable Specs & Approvals: ABS, Applicable MSHA Standards, SAE 100R17
Compatible with the following Series: 1AA MatchMate Series
Hose Properties:
Application: General industrial and hydraulic system service with petroleum and waterbased fluids. SAE Rating: Meets: SAE 100R17
Other Ratings: N/A Tube: Synthetic Rubber
Reinforcement: Single or Double-wire braid Cover: Ozone Flexible Neoprene Rubber
Temperature Range: (-40°F to +212°F)
(-40°C to +100°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC639-04 6 6,4mm 0.25" 12,7mm 0.50" 210,0 bar 3000 psi 840,0 bar 12000 psi 50,8mm 2.00" 0,22 kg/m 0.15 lbs/ft
FC639-06 10 9,7mm 0.38" 16,5mm 0.65" 210,0 bar 3000 psi 840,0 bar 12000 psi 63,5mm 2.50" 0,34 kg/m 0.23 lbs/ft
FC639-08 12 12,7mm 0.50" 20,8mm 0.82" 210,0 bar 3000 psi 840,0 bar 12000 psi 88,9mm 3.50" 0,48 kg/m 0.32 lbs/ft
FC639-10* 16 16,0mm 0.63" 24,9mm 0.98" 210,0 bar 3000 psi 840,0 bar 12000 psi 101,6mm 4.00" 0,76 kg/m 0.51 lbs/ft
FC639-12* 19 19,1mm 0.75" 28,48mm 1.12" 210,0 bar 3000 psi 840,0 bar 12000 psi 120,7mm 4.75" 0,94 kg/m 0.63 lbs/ft
FC639-16* 25 25,4mm 1.00" 37,1mm 1.46" 210,0 bar 3000 psi 840,0 bar 12000 psi 152,4mm 6.00" 1,24 kg/m 0.83 lbs/ft

* Double wire braids of high tensile wire.

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
