FC639-12 Aeroquip by Danfoss | MatchMate® Global 3000 PSI Constant Pressure Double Wire Braid Hydraulic Hose | SAE 100R1 | 0.75" ID

FC639-12 Aeroquip by Danfoss | MatchMate® Global 3000 PSI Constant Pressure Double Wire Braid Hydraulic Hose | SAE 100R1 | 0.75" ID

$13.96 - $13.96
$13.96
$13.96 - $13.96
$13.96

Aeroquip® by Danfoss

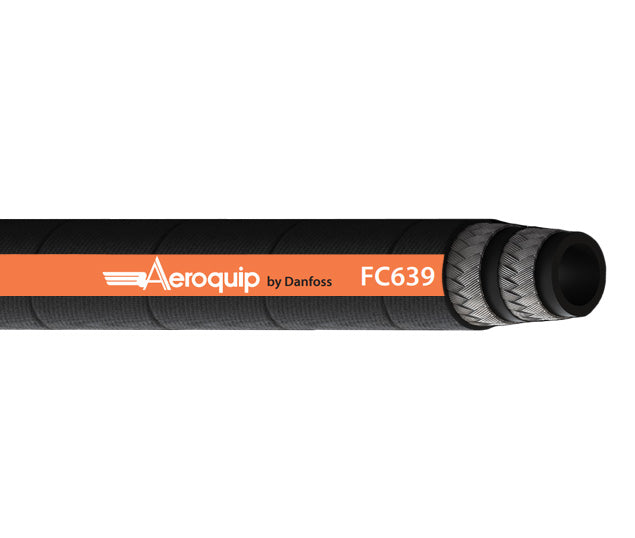

FC639 Series | MatchMate® Global 3000 PSI Constant Pressure Wire Braid Hydraulic Hose

Recommended for highpressure oil lines used on construction equipment and other off-highway applications.

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FC639-12 Danfoss
Brand: Aeroquip
Series: FC639 Series
Hose Color(s): Black
Dash Size: -12
Internal Diameter: 0.75in
Outer Diameter: 1.14in
Tubing Construction: Synthetic Rubber
Cover Construction: Neoprene
Applicable Specs & Approvals: ABS, Applicable MSHA Standards, SAE 100R17
Hose Properties:
Application: General industrial and hydraulic system service with petroleum and waterbased fluids. SAE Rating: Meets: SAE 100R17
Other Ratings: N/A Tube: Synthetic Rubber
Reinforcement: Single or Double-wire braid Cover: Ozone Flexible Neoprene Rubber
Temperature Range: (-40°F to +212°F)
(-40°C to +100°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC639-04 6 6,4mm 0.25" 12,7mm 0.50" 210,0 bar 3000 psi 840,0 bar 12000 psi 50,8mm 2.00" 0,22 kg/m 0.15 lbs/ft
FC639-06 10 9,7mm 0.38" 16,5mm 0.65" 210,0 bar 3000 psi 840,0 bar 12000 psi 63,5mm 2.50" 0,34 kg/m 0.23 lbs/ft
FC639-08 12 12,7mm 0.50" 20,8mm 0.82" 210,0 bar 3000 psi 840,0 bar 12000 psi 88,9mm 3.50" 0,48 kg/m 0.32 lbs/ft
FC639-10* 16 16,0mm 0.63" 24,9mm 0.98" 210,0 bar 3000 psi 840,0 bar 12000 psi 101,6mm 4.00" 0,76 kg/m 0.51 lbs/ft
FC639-12* 19 19,1mm 0.75" 28,48mm 1.12" 210,0 bar 3000 psi 840,0 bar 12000 psi 120,7mm 4.75" 0,94 kg/m 0.63 lbs/ft
FC639-16* 25 25,4mm 1.00" 37,1mm 1.46" 210,0 bar 3000 psi 840,0 bar 12000 psi 152,4mm 6.00" 1,24 kg/m 0.83 lbs/ft

* Double wire braids of high tensile wire.

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
