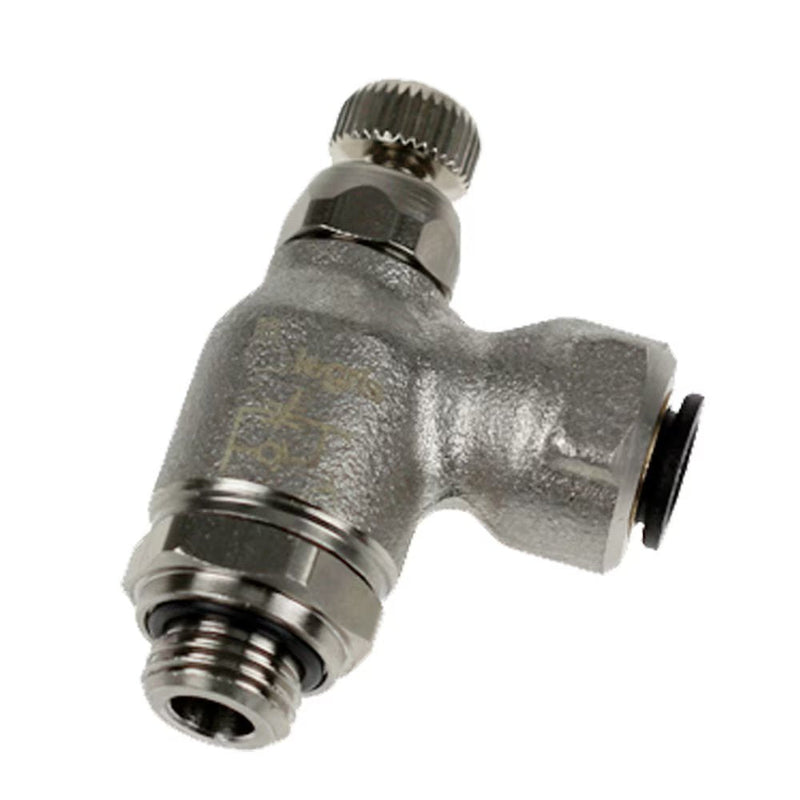

FC701-10M-6G by Parker | Push-to-Connect Meter Out Metal Flow Control | 10 mm Push-to-Connect x 3/8" Male BSPP Thread | 25 mm Height | 90° Elbow | Nickel Plated Brass

FC701-10M-6G by Parker | Push-to-Connect Meter Out Metal Flow Control | 10 mm Push-to-Connect x 3/8" Male BSPP Thread | 25 mm Height | 90° Elbow | Nickel Plated Brass

Save $4.10 Save $4.10
$56.47
$56.47 - $56.47
$56.47
$52.37
$52.37 - $52.37
$52.37

by Parker Hannifin
Metal Flow Controls:FC701 Push-to-Connect Meter Out Metal Flow Control - BSPP
Specifications for Variant SKU: FC701-10M-6G Parker
Series: FC701 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Petrochemical, Valved, Flow Control
Product Features:
  • Treated brass body
  • Stainless steel gripping ring
  • Electroless-nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
Markets:
  • Factory/Process Automation
  • Petrochemical
  • Automotive Process
Applications:
  • Robotics
  • Packaging
  • Textile
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: -4° to +158° F (-20° to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size BSPP Hex 1 Hex 2 H Closed H Open L
FC701-4M-2G 4 mm 1/8" 10 mm 19 mm 47.0 mm 53.0 mm 21.0 mm
FC701-6M-2G 6 mm 1/8" 10 mm 19 mm 47.0 mm 53.0 mm 24.5 mm
FC701-6M-4G 6 mm 1/4" 10 mm 19 mm 47.5 mm 53.0 mm 24.5 mm
FC701-8M-2G 8 mm 1/8" 14 mm 19 mm 50.0 mm 55.0 mm 29.0 mm
FC701-8M-4G 8 mm 1/4" 14 mm 19 mm 50.0 mm 56.0 mm 29.0 mm
FC701-8M-6G 8 mm 3/8" 17 mm 25 mm 56.0 mm 62.0 mm 30.5 mm
FC701-10M-4G 10 mm 1/4" 14 mm 19 mm 50.0 mm 56.0 mm 35.0 mm
FC701-10M-6G 10 mm 3/8" 17 mm 25 mm 56.0 mm 62.0 mm 35.0 mm
FC701-12M-6G 12 mm 3/8" 17 mm 25 mm 56.0 mm 62.0 mm 38.0 mm
FC701-12M-8G 12 mm 1/2" 17 mm 25 mm 55.0 mm 62.0 mm 38.0 mm
FC701-14M-8G 14 mm 1/2" 17 mm 25 mm 55.0 mm 62.0 mm 41.0 mm
>
