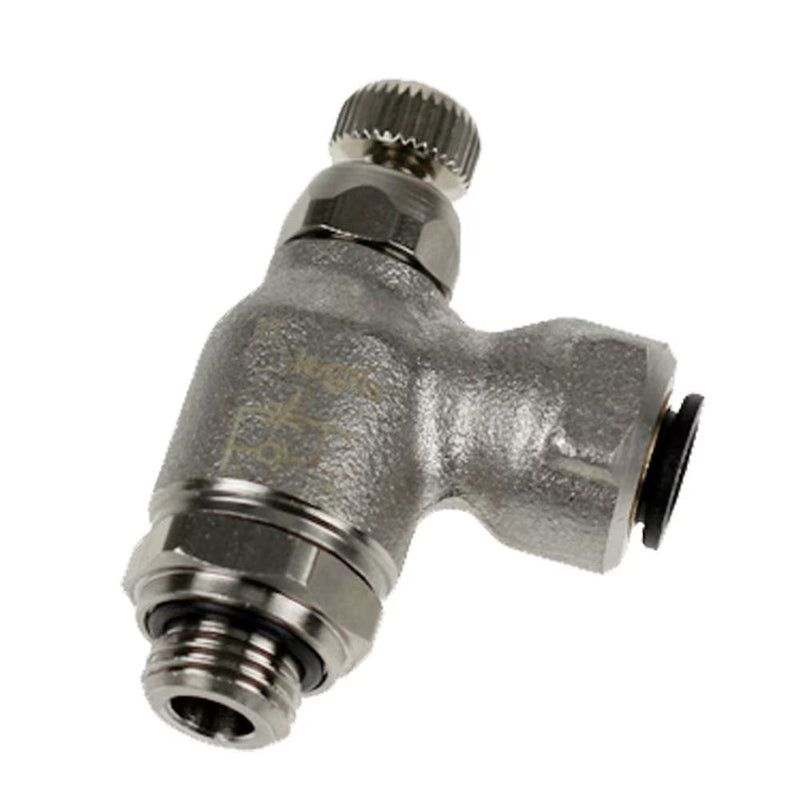

FC701-6M-4G by Parker | Push-to-Connect Meter Out Metal Flow Control | 6 mm Push-to-Connect x 1/4" Male BSPP Thread | 19 mm Height | 90° Elbow | Nickel Plated Brass | Pack of 5

Save $32.53

$265.13

$265.13 - $265.13

$265.13

$232.60

$232.60 - $232.60

$232.60

by Parker Hannifin
Metal Flow Controls:FC701 Push-to-Connect Meter Out Metal Flow Control - BSPP

Package Quantity: 5 Units

Specifications for Variant SKU: FC701-6M-4G Parker \| 5 \|
Series:	FC701 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Petrochemical, Valved, Flow Control

Product Features:	Treated brass body Stainless steel gripping ring Electroless-nickel-plated brass adjustment screw Nickel-plated brass locking nut Nickel-plated threads Nitrile D seal
Markets:	Factory/Process Automation Petrochemical Automotive Process
Applications:	Robotics Packaging Textile
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	-4° to +158° F (-20° to +70° C)
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	Tube Size	BSPP	Hex 1	Hex 2	H Closed	H Open	L
FC701-4M-2G	4 mm	1/8"	10 mm	19 mm	47.0 mm	53.0 mm	21.0 mm
FC701-6M-2G	6 mm	1/8"	10 mm	19 mm	47.0 mm	53.0 mm	24.5 mm
FC701-6M-4G	6 mm	1/4"	10 mm	19 mm	47.5 mm	53.0 mm	24.5 mm
FC701-8M-2G	8 mm	1/8"	14 mm	19 mm	50.0 mm	55.0 mm	29.0 mm
FC701-8M-4G	8 mm	1/4"	14 mm	19 mm	50.0 mm	56.0 mm	29.0 mm
FC701-8M-6G	8 mm	3/8"	17 mm	25 mm	56.0 mm	62.0 mm	30.5 mm
FC701-10M-4G	10 mm	1/4"	14 mm	19 mm	50.0 mm	56.0 mm	35.0 mm
FC701-10M-6G	10 mm	3/8"	17 mm	25 mm	56.0 mm	62.0 mm	35.0 mm
FC701-12M-6G	12 mm	3/8"	17 mm	25 mm	56.0 mm	62.0 mm	38.0 mm
FC701-12M-8G	12 mm	1/2"	17 mm	25 mm	55.0 mm	62.0 mm	38.0 mm
FC701-14M-8G	14 mm	1/2"	17 mm	25 mm	55.0 mm	62.0 mm	41.0 mm

>
