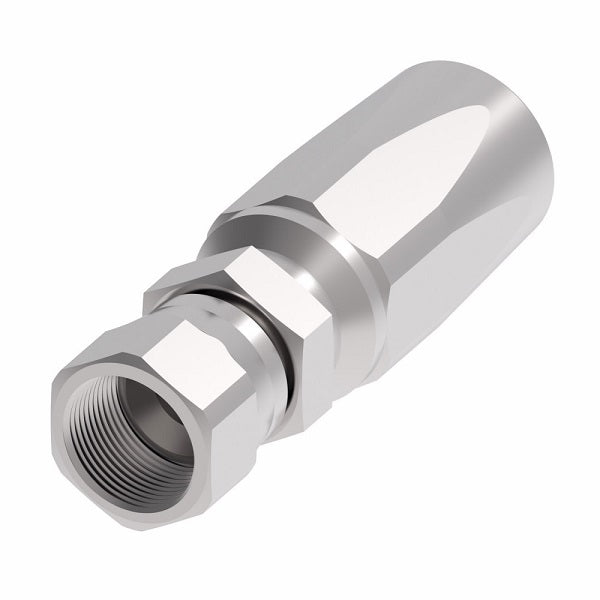

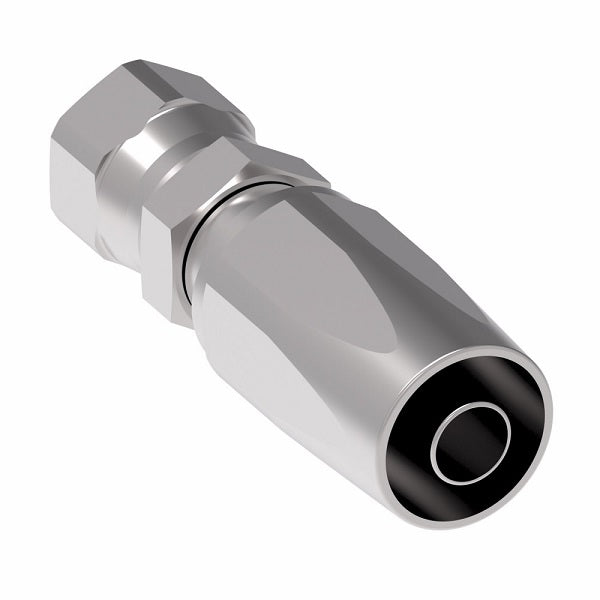

FC7988-0808S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel
FC7988-0808S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel
FC7988-0808S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel
FC7988-0808S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

FC7988-0808S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

$38.04 - $38.04
$38.04
$38.04 - $38.04
$38.04

Aeroquip® by Danfoss
1 Wire TTC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC7988-0808S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Female JIC, 1/2in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: GH663 Series
Technical Info:
Note:
  • Fittings are compatible with Danfoss GH663 Hose, ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ
FC7988-0404S -04 7/16-20 2.50" 1.46" 0.17"
FC7988-0604S -04 9/16-18 2.64" 1.60" 0.17"
FC7988-0606S -06 9/16-18 2.91" 1.78" 0.31"
FC7988-0806S -06 3/4-16 3.04" 1.9" 0.31"
FC7988-0808S -08 3/4-16 3.18" 1.70" 0.39"
FC7988-1008S -08 7/8-14 3.30" 1.82" 0.39"
FC7988-1212S -12 1-1/16-12 3.80" 2.20" 0.61"
FC7988-1616S -16 1-5/16-12 4.33" 2.21" 0.82"
