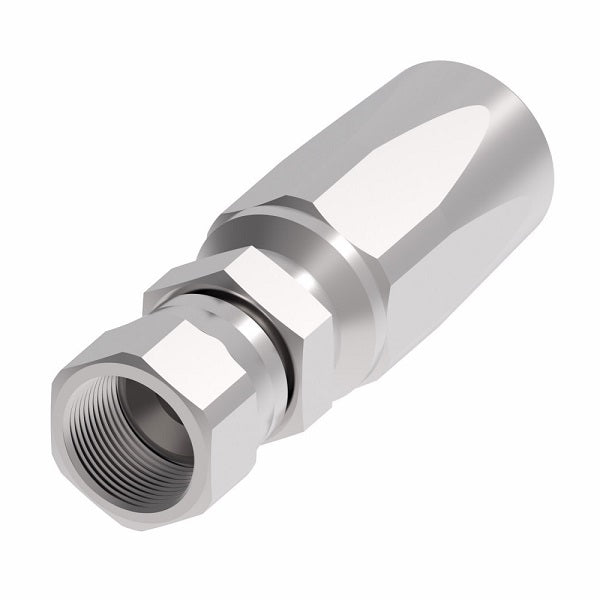

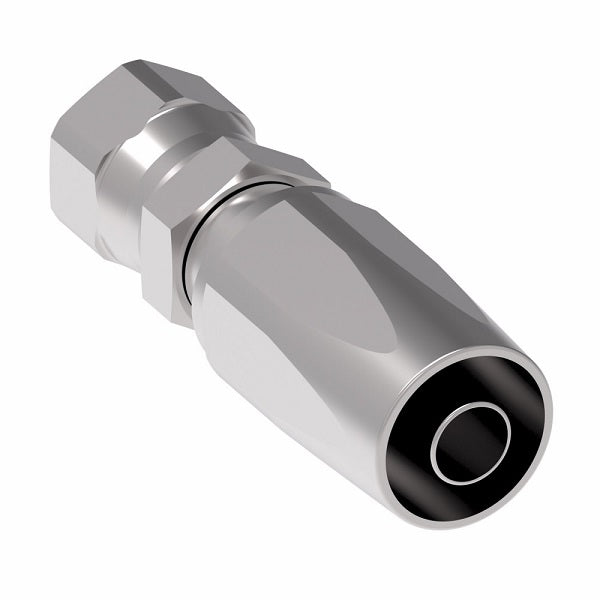

FC7988-1212S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

FC7988-1212S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel | Pack of 10

$627.68 - $627.68

$627.68

$627.68 - $627.68

$627.68

Aeroquip® by Danfoss
1 Wire TTC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC - Straight

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FC7988-1212S Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female JIC, 3/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	GH663 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
Fittings are compatible with Danfoss GH663 Hose, ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ
FC7988-0404S	-04	7/16-20	2.50"	1.46"	0.17"
FC7988-0604S	-04	9/16-18	2.64"	1.60"	0.17"
FC7988-0606S	-06	9/16-18	2.91"	1.78"	0.31"
FC7988-0806S	-06	3/4-16	3.04"	1.9"	0.31"
FC7988-0808S	-08	3/4-16	3.18"	1.70"	0.39"
FC7988-1008S	-08	7/8-14	3.30"	1.82"	0.39"
FC7988-1212S	-12	1-1/16-12	3.80"	2.20"	0.61"
FC7988-1616S	-16	1-5/16-12	4.33"	2.21"	0.82"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
