Aeroquip® by Danfoss

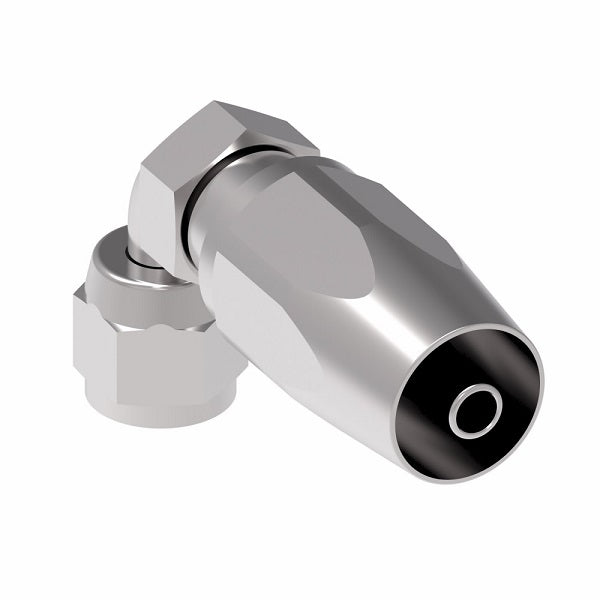

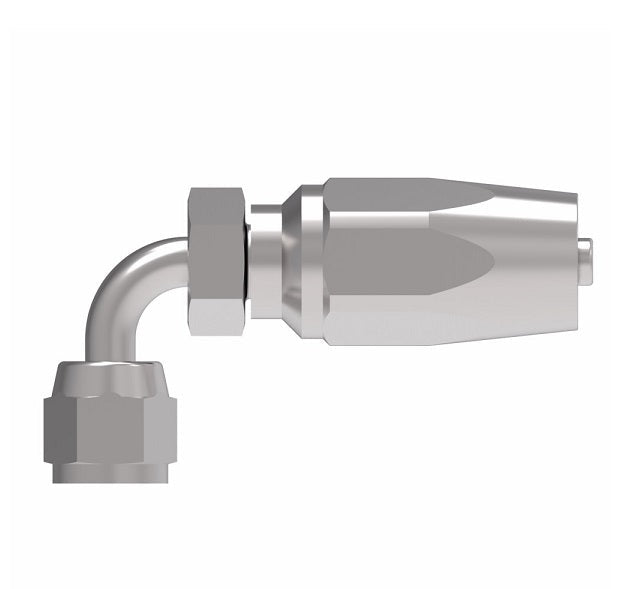

1 Wire TTC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC7992-0404S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female JIC, 1/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: GH663 Series
Technical Info:
Note:
  • Fittings are compatible with Danfoss GH663 Hose, ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ HØ
FC7992-0404S -04 7/16-20 2.26" 1.22" 0.17" 0.68"
FC7992-0606S -06 9/16-18 2.65" 1.52" 0.31" 0.85"
FC7992-0808S -08 3/4-16 3.00" 1.54" 0.39" 1.09"
FC7992-1212S -12 1-1/16-12 4.05" 2.45" 0.61" 1.82"
