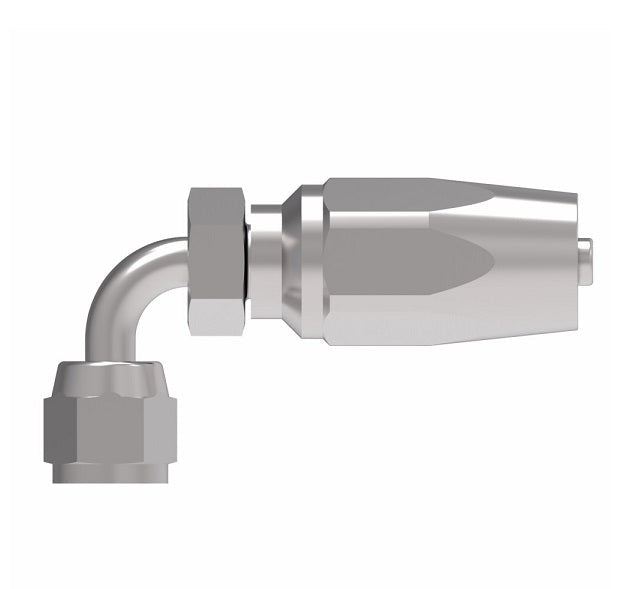

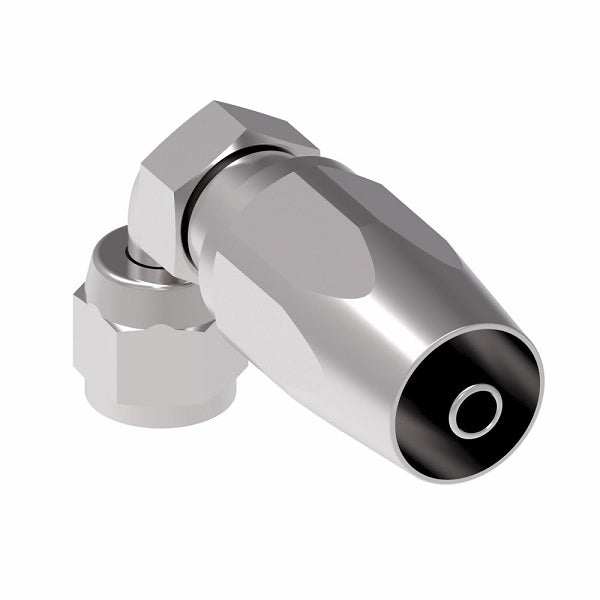

FC7992-1212S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel Short Drop 90° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
FC7992-1212S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel Short Drop 90° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel | Pack of 10
FC7992-1212S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel Short Drop 90° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel | Pack of 10
FC7992-1212S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel Short Drop 90° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

FC7992-1212S Aeroquip by Danfoss | 1 Wire TTC Female 37° JIC Swivel Short Drop 90° Elbow 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel | Pack of 10

$1,577.30 - $1,577.30
$1,577.30
$1,577.30 - $1,577.30
$1,577.30

Aeroquip® by Danfoss
1 Wire TTC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel Short Drop - 90° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FC7992-1212S Danfoss | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female JIC, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: GH663 Series
Technical Info:
Note:
  • Fittings are compatible with Danfoss GH663 Hose, ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ HØ
FC7992-0404S -04 7/16-20 2.26" 1.22" 0.17" 0.68"
FC7992-0606S -06 9/16-18 2.65" 1.52" 0.31" 0.85"
FC7992-0808S -08 3/4-16 3.00" 1.54" 0.39" 1.09"
FC7992-1212S -12 1-1/16-12 4.05" 2.45" 0.61" 1.82"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
