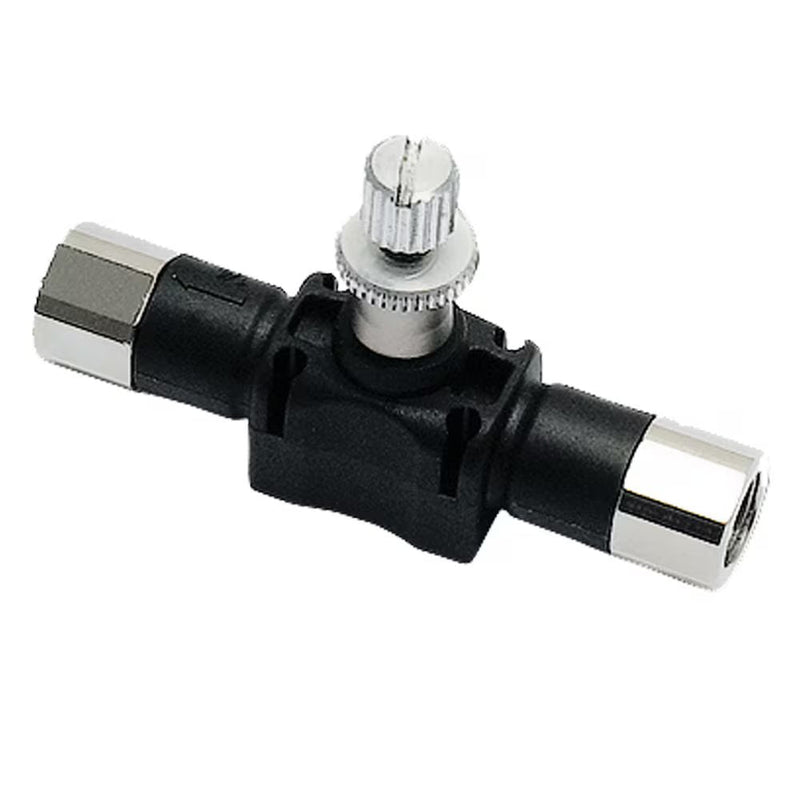

FC836-2G by Parker | Threaded In-Line Flow Control | 1/8" Female BSPP Thread x 1/8" Female BSPP Thread | 68.5 mm Length | 44.5 mm Width | Straight | Glass-Reinforced Nylon

FC836-2G by Parker | Threaded In-Line Flow Control | 1/8" Female BSPP Thread x 1/8" Female BSPP Thread | 68.5 mm Length | 44.5 mm Width | Straight | Glass-Reinforced Nylon

Save $20.18 Save $20.18
$50.45
$50.45 - $50.45
$50.45
$30.27
$30.27 - $30.27
$30.27

by Parker Hannifin
In-Line Flow Controls:FC836 Threaded In-Line Flow Control - BSPP
Specifications for Variant SKU: FC836-2G Parker
Series: FC836 Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade, Valved, Flow Control
Product Features:
  • Glass reinforced nylon 6.6 body
  • Stainless straight gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
  • Panel mountable
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Hex 1 Hex 2 H Closed H Open K L L1 N1 N2 T
FC836-2G 1/8" 13 mm 8 mm 39.5 mm 44.5 mm 17.0 mm 68.5 mm 11.0 mm 17.0 mm 3.2 mm
FC836-4G 1/4" 16 mm 11 mm 44.0 mm 50.0 mm 18.5 mm 83.0 mm 12.5 mm 20.0 mm 3.2 mm
FC836-6G 3/8" 19 mm 14 mm 52.0 mm 61.0 mm 24.0 mm 97.5 mm 16.0 mm 26.0 mm 4.2 mm
FC836-8G 1/2" 24 mm 14 mm 57.5 mm 67.5 mm 28.0 mm 121.0 mm 20.0 mm 27.5 mm 4.2 mm
