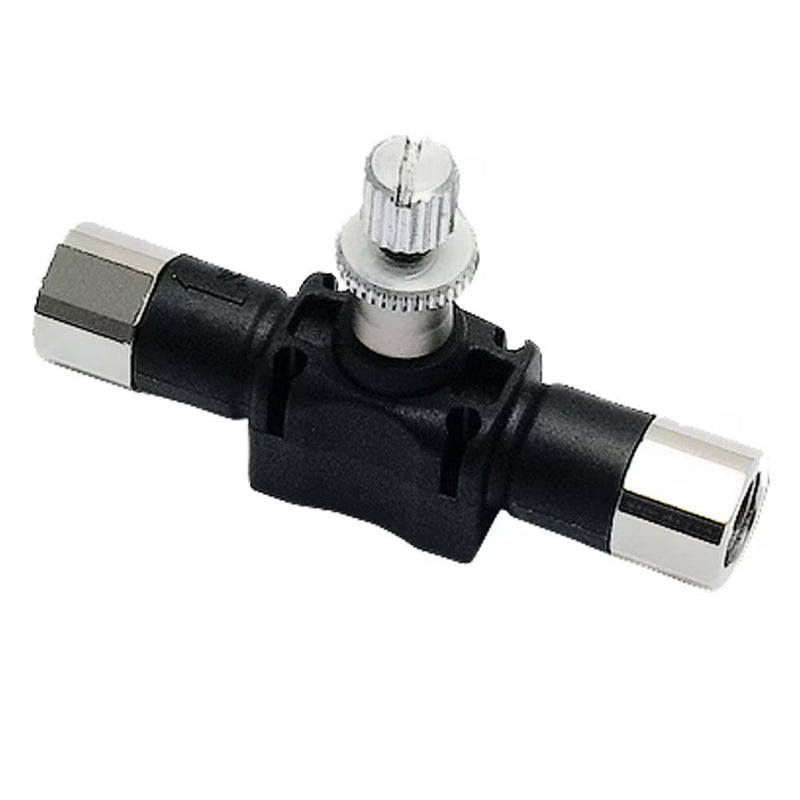

FC836-8G by Parker | Threaded In-Line Flow Control | 1/2" Female BSPP Thread x 1/2" Female BSPP Thread | 121.0 mm Length | 67.5 mm Width | Straight | Glass-Reinforced Nylon

Save $12.44

$74.79

$74.79 - $74.79

$74.79

$62.35

$62.35 - $62.35

$62.35

by Parker Hannifin
In-Line Flow Controls:FC836 Threaded In-Line Flow Control - BSPP

Specifications for Variant SKU: FC836-8G Parker
Series:	FC836 Series
Shape (Orientation):	Straight
Material(s):	Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Food Grade, Valved, Flow Control

Product Features:	Glass reinforced nylon 6.6 body Stainless straight gripping ring Nickel-plated brass adjustment screw Nickel-plated brass locking nut Nickel-plated threads Nitrile D seal Panel mountable
Markets:	Factory/Process Automation Life Science Food Processing Water And Beverage Petrochemical
Applications:	Packaging Filling Dispensing Bottling Pneumatic Circuits
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	+32° to +158° F (0 to +70° C)
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	Hex 1	Hex 2	H Closed	H Open	K	L	L1	N1	N2	T
FC836-2G	1/8"	13 mm	8 mm	39.5 mm	44.5 mm	17.0 mm	68.5 mm	11.0 mm	17.0 mm	3.2 mm
FC836-4G	1/4"	16 mm	11 mm	44.0 mm	50.0 mm	18.5 mm	83.0 mm	12.5 mm	20.0 mm	3.2 mm
FC836-6G	3/8"	19 mm	14 mm	52.0 mm	61.0 mm	24.0 mm	97.5 mm	16.0 mm	26.0 mm	4.2 mm
FC836-8G	1/2"	24 mm	14 mm	57.5 mm	67.5 mm	28.0 mm	121.0 mm	20.0 mm	27.5 mm	4.2 mm
