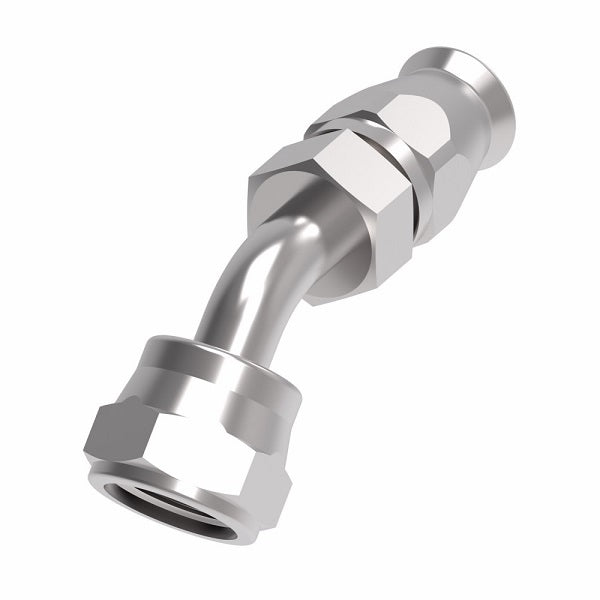

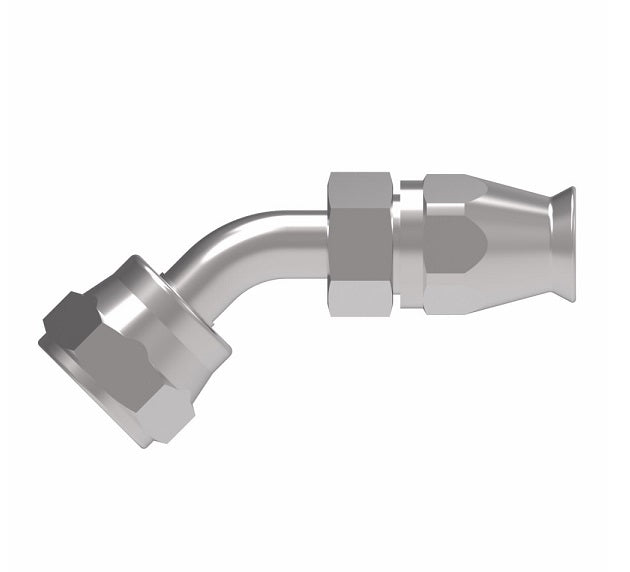

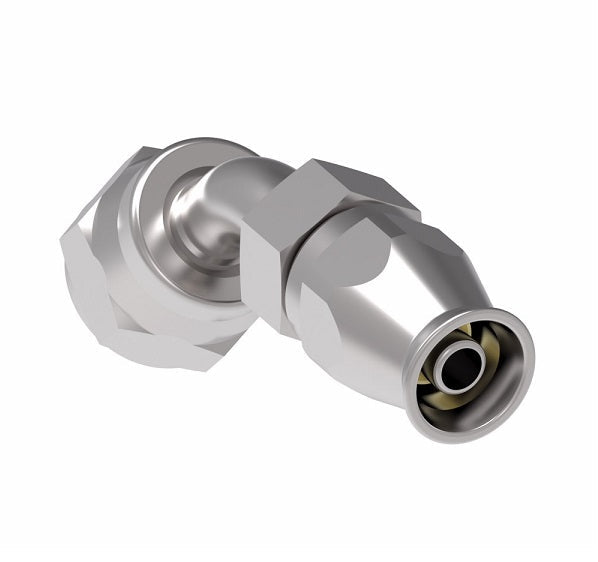

FC9341-0606S Aeroquip by Danfoss | Female SAE 45° Swivel 45° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -06 Female SAE 45° Swivel x -06 Reusable Hose End | Steel

FC9341-0606S Aeroquip by Danfoss | Female SAE 45° Swivel 45° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -06 Female SAE 45° Swivel x -06 Reusable Hose End | Steel

Name: FC9341-0606S Aeroquip by Danfoss | Female SAE 45° Swivel 45° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -06 Female SAE 45° Swivel x -06 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC9341-0606S Danfoss
Price: 37.87 USD
Availability: InStock

$37.87 - $37.87

$37.87

$37.87 - $37.87

$37.87

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - FC Series - Female SAE 45° - 45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FC9341-0606S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	3/8in Female SAE 45 Flare, 3/8in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
FC9341-0606S	-06	5/8-18	1.72"	1.20"	0.28"	0.39"	900568-6B	900568-6C
FC9341-1212S	-12	1-1/16-14	2.86"	2.21"	0.59"	0.78"	900568-12B	900568-12C
