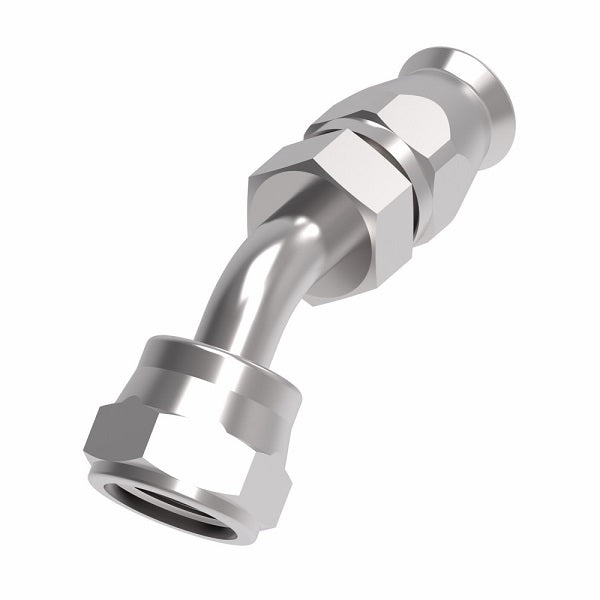

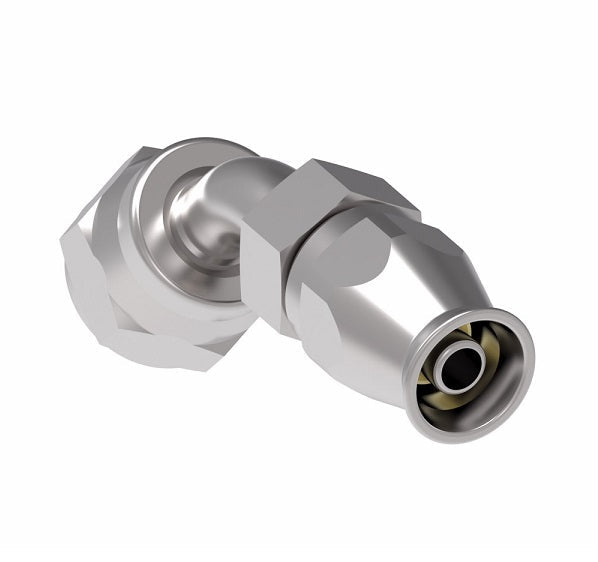

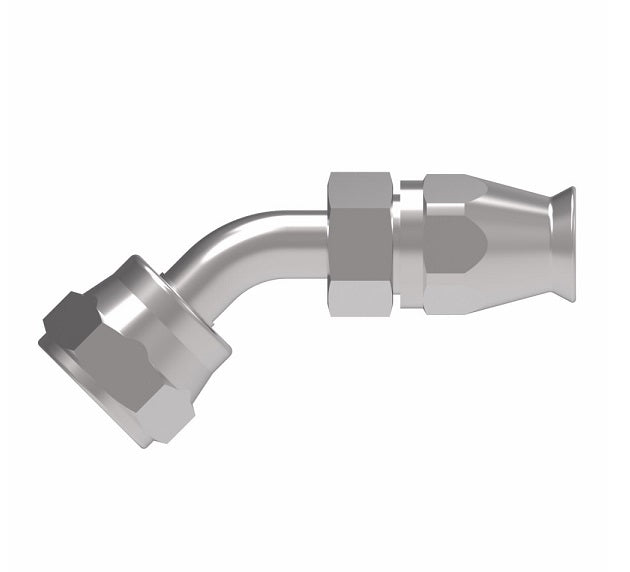

FC9341-1212S Aeroquip by Danfoss | Female SAE 45° Swivel 45° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -12 Female SAE 45° Swivel x -12 Reusable Hose End | Steel

FC9341-1212S Aeroquip by Danfoss | Female SAE 45° Swivel 45° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -12 Female SAE 45° Swivel x -12 Reusable Hose End | Steel

Name: FC9341-1212S Aeroquip by Danfoss | Female SAE 45° Swivel 45° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -12 Female SAE 45° Swivel x -12 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC9341-1212S Danfoss
Price: 70.06 USD
Availability: InStock

$70.06 - $70.06

$70.06

$70.06 - $70.06

$70.06

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - FC Series - Female SAE 45° - 45° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FC9341-1212S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female SAE 45 Flare, 3/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
FC9341-0606S	-06	5/8-18	1.72"	1.20"	0.28"	0.39"	900568-6B	900568-6C
FC9341-1212S	-12	1-1/16-14	2.86"	2.21"	0.59"	0.78"	900568-12B	900568-12C

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
