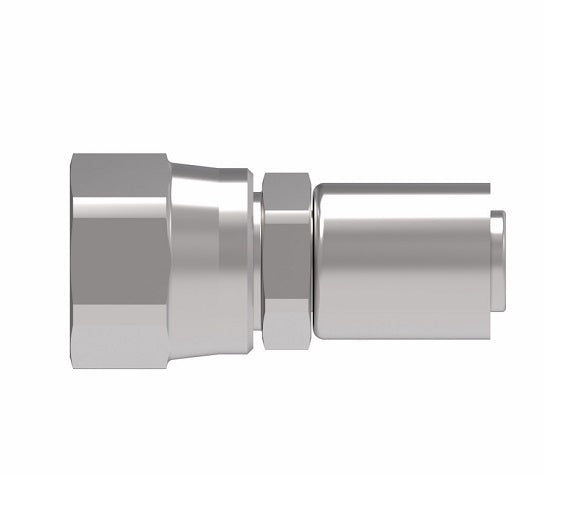

FC9779-0808S Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -08 Female 37° JIC Swivel x -08 Hose Barb | Steel

FC9779-0808S Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -08 Female 37° JIC Swivel x -08 Hose Barb | Steel

Name: FC9779-0808S Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -08 Female 37° JIC Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FC9779-0808S Danfoss
Price: 18.5 USD
Availability: InStock

$18.50 - $18.50

$18.50

$18.50 - $18.50

$18.50

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female 37° JIC Swivel - Straight - Steel

FC Series

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FC9779-0808S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female JIC, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2807 Series \| FC465 Series \| S-TW Series \| SC-TW Series

Technical Info:
Crimp Fitting Socket Data.PDF


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number	Socket Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1	Hex 2
FC9779-0404S	FC8779-0404S	FC3596-04S	7/16-20	-04	1.55"	0.96"	0.12"	9/16"	7/16"
FC9779-0505S	FC8779-0505S	FC3443-04S	1-1/2-20	-05	1.50"	1.01"	0.19"	5/8"	1/2"
FC9779-0606S	FC8779-0606S	FC3443-05S	9/16-18	-06	1.60"	1.11"	0.25"	11/16"	9/16"
FC9779-0808S	FC8779-0808S	FC3596-08S	3/4-16	-08	2.10"	1.21"	0.34"	7/8"	11/16"
FC9779-1010S	FC8779-1010S	FC3443-08S	7/8-14	-10	2.21"	1.32"	0.44"	1"	13/16"
FC9779-1212S	FC8779-1212S	FC3596-12S	11/16-12	-12	2.29"	1.41"	0.56"	1-1/4"	1"
FC9779-1616S	FC8779-1616S	FC3596-16S	1-5/16-12	-16	2.52"	1.64"	0.80"	1-1/2"	1-1/4"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
