FC9779-1616S Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Hose Barb | Steel
FC9779-1616S Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Hose Barb | Steel | Pack of 10
FC9779-1616S Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Hose Barb | Steel | Pack of 10
FC9779-1616S Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Hose Barb | Steel

FC9779-1616S Aeroquip by Danfoss | Female 37° JIC Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Hose Barb | Steel | Pack of 10

$497.40 - $497.40
$497.40
$497.40 - $497.40
$497.40

Aeroquip® by Danfoss

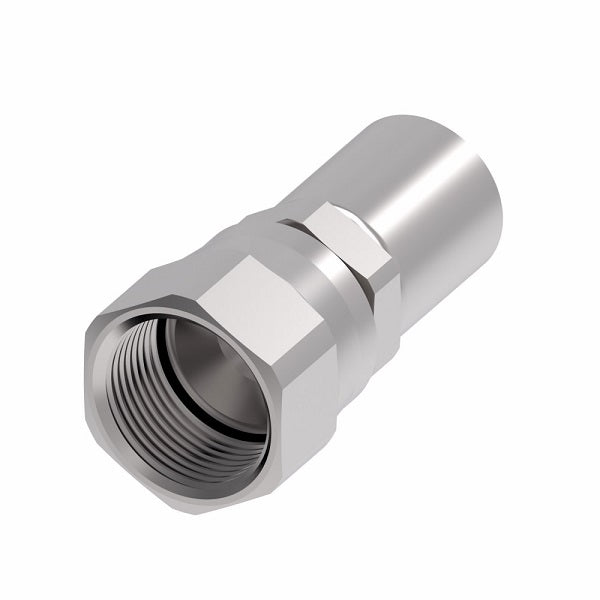

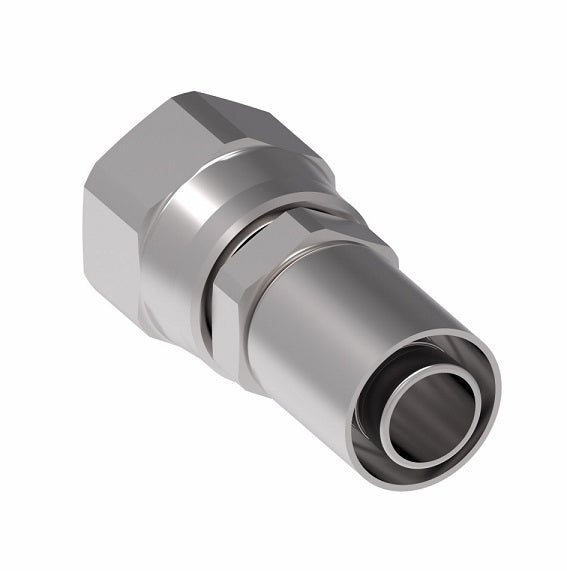

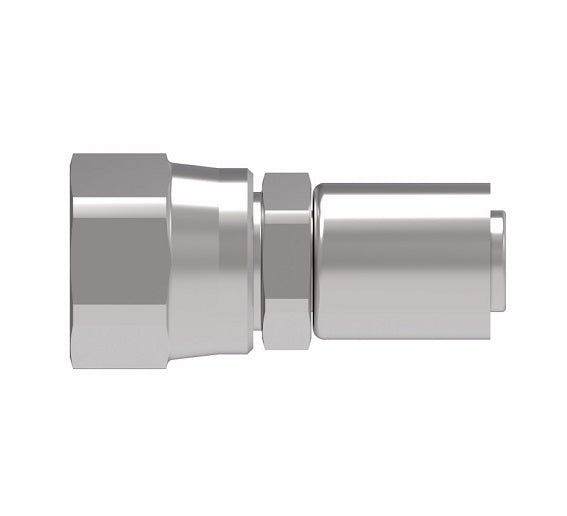

Teflon* PTFE Crimp Fitting - Female 37° JIC Swivel - Straight - Steel

FC Series

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FC9779-1616S Danfoss | 10 |
Shape (Orientation): Straight
Ends Configuration: 1in Female JIC, 1in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2807 Series  |   FC465 Series  |   S-TW Series  |   SC-TW Series
Technical Info:
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Socket
Part Number 		Thread Hose Size A D E&Oslash Hex 1

 Hex 2
FC9779-0404S FC8779-0404S FC3596-04S 7/16-20 -04 1.55" 0.96" 0.12" 9/16" 7/16"
FC9779-0505S FC8779-0505S FC3443-04S 1-1/2-20 -05 1.50" 1.01" 0.19" 5/8" 1/2"
FC9779-0606S FC8779-0606S FC3443-05S 9/16-18 -06 1.60" 1.11" 0.25" 11/16" 9/16"
FC9779-0808S FC8779-0808S FC3596-08S 3/4-16 -08 2.10" 1.21" 0.34" 7/8" 11/16"
FC9779-1010S FC8779-1010S FC3443-08S 7/8-14 -10 2.21" 1.32" 0.44" 1" 13/16"
FC9779-1212S FC8779-1212S FC3596-12S 11/16-12 -12 2.29" 1.41" 0.56" 1-1/4" 1"
FC9779-1616S FC8779-1616S FC3596-16S 1-5/16-12 -16 2.52" 1.64" 0.80" 1-1/2" 1-1/4"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
